Features & applications

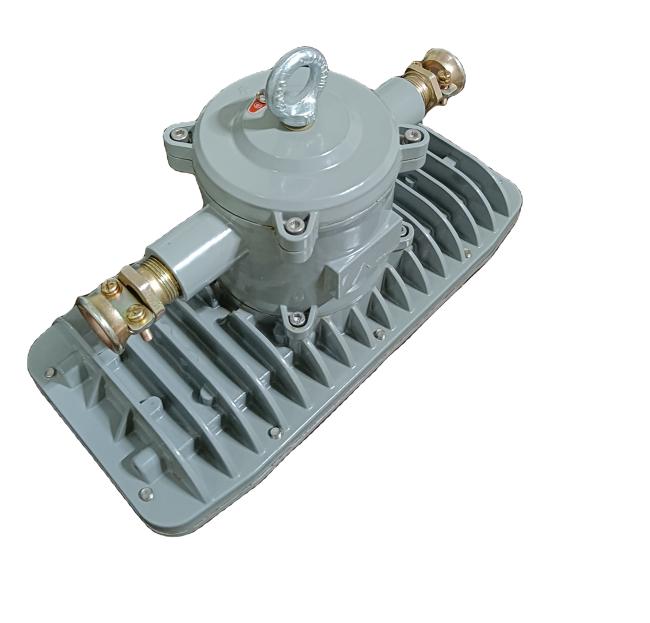

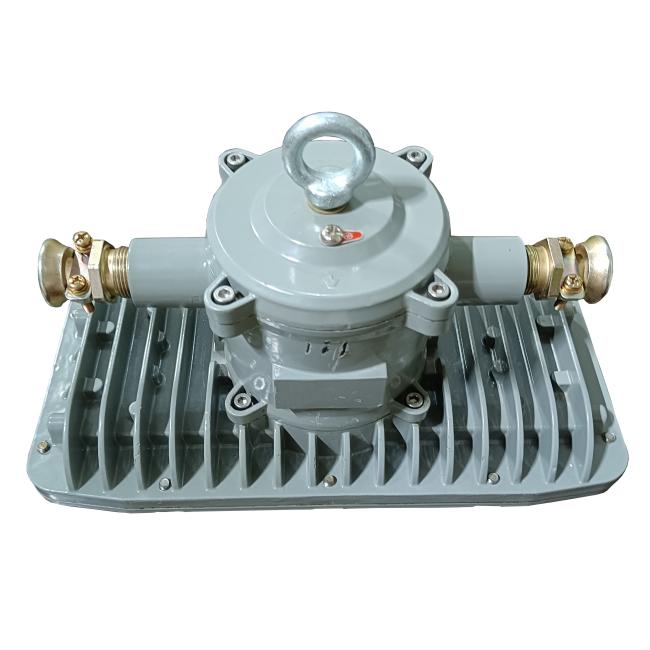

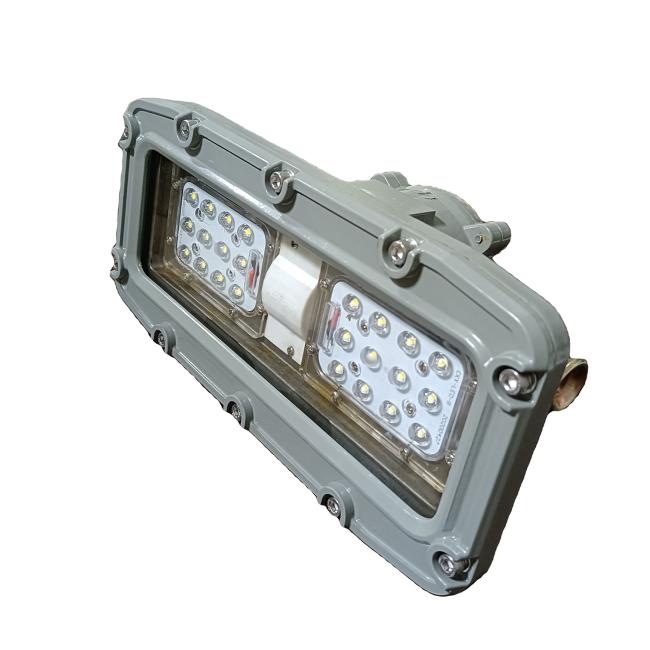

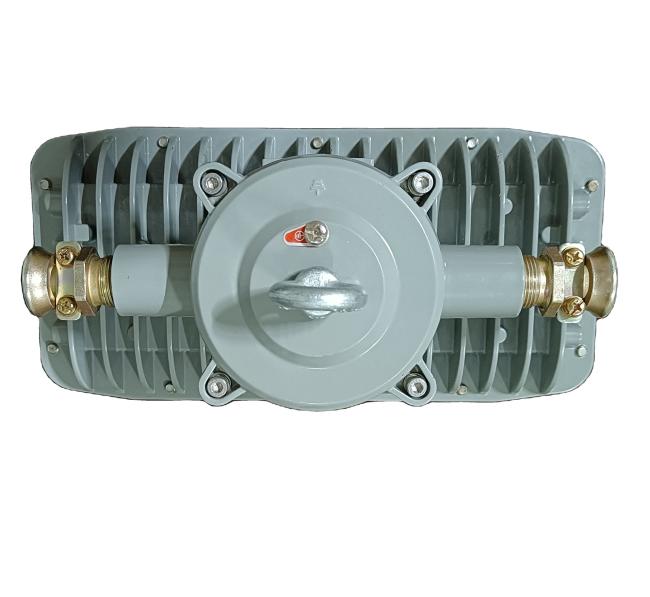

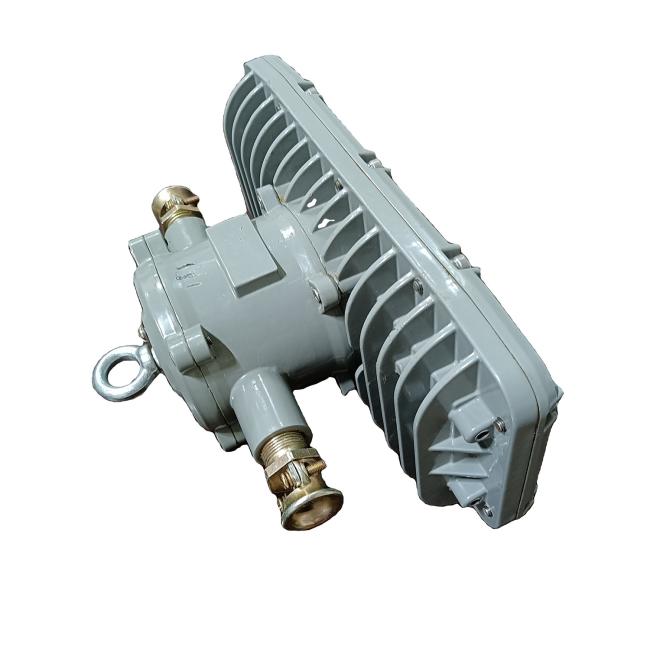

DGS50Ex mine radar induction flame-proof LED Laneway Lamp adopts the flame proof design. The LED is driven by constant-current driving power, with power input of 85-265V; lamp adopts radar microwave induction to adjust the luminosity according to actual working condition in both of micro power and full power mode. The lamp transparent parts adopt toughened glass, to make sure high transmittance and meet the impact strength requirements. The shell of the lamp is casted of ZG30 manganese silicon steel to ensure the flameproof surface accuracy after machining, and then to meet explosion-proof strength requirements. The light source uses 3535 high power LED, which is with features of high luminous efficiency, high color-rendering index and long service life.

This product has excellent explosion-proof performance ,and it is suitable as fixed lighting at the underground coal mine,underground chamber etc. Places with methane and coal dust explosion hazard in a three-phase AC 127V neutral-grounded power grid.

Technical parameters

Working conditions

1 Ambient temperature 0 ℃~ 40 ℃, air pressure 0.8~1.1×105Pa;

2 Altitudes: below 2000m;

3 Ambient air monthly average relative humidity <=95%(25℃);

4 Underground coal mine with explosion hazard of gas and coal dust;

5 It won’t breakdown insulation in the gas or vapor environment

6 The class of pollution is 3 levels;

7 It is suitable for underground coal mine non-excavation working surface;

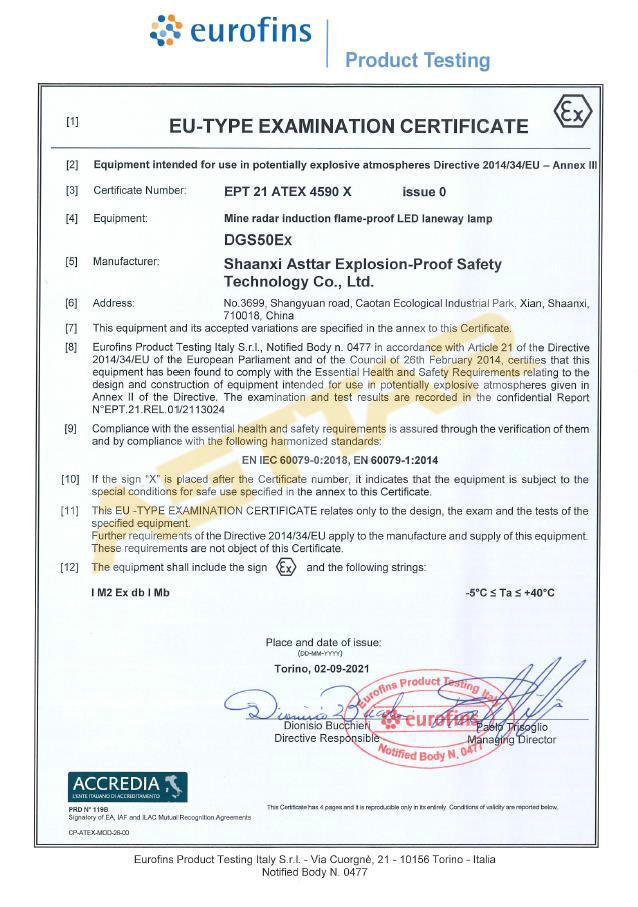

ATEX Certificate

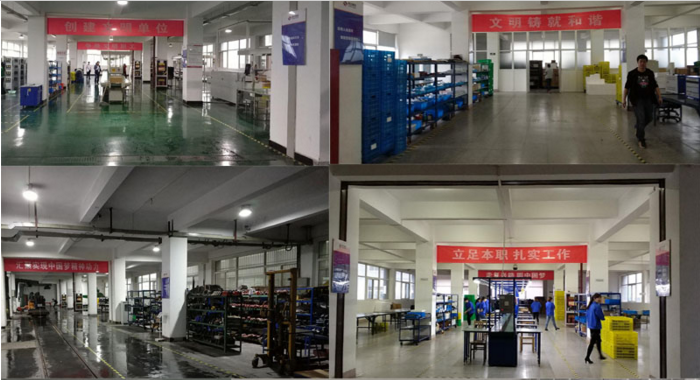

Workshops

Related products

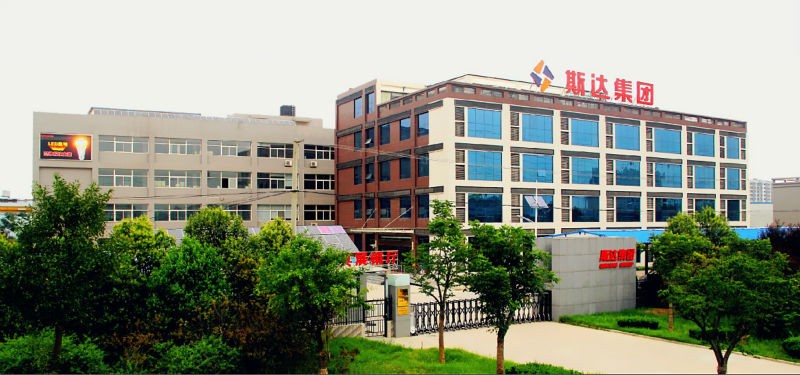

With ISO9001, CE authorized lab on respiratory devices for PPE directive, more than 26 years’ experience, ODM, OEM service provided, ASTTAR is specialized in developing and manufacturing of explosion-proof safety technology and products. We trade as "GOKANG" brand (former brand, since1995) and "ASTTAR" brand (since 2017).

We mainly export products of three categories:

1. Mining underground rescue product

2. Mining explosion-proof lamp

3. Mining explosion-proof instrument and meter

Our main products:

1. Mining self-rescuer

2. LED miner's cap lamp

3. LED Flame-proof laneway lamp

4. Mechanical and electronic anemometer

5. Isolated positive pressure oxygen breathing apparatus

6. Automatic resuscitator

7. Optical interference type methane detector

8. Portable multi-parameter gas detector

9. Infrared thermometer

10. Laser distance meter

11. Laser guider
