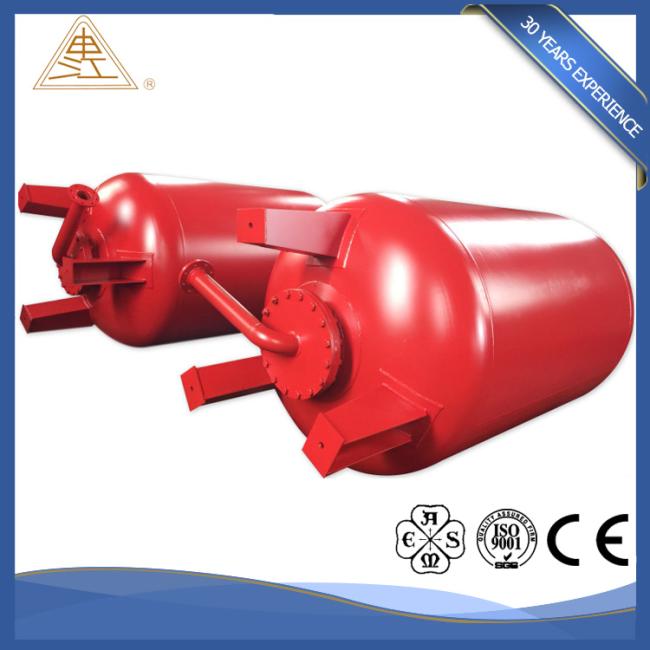

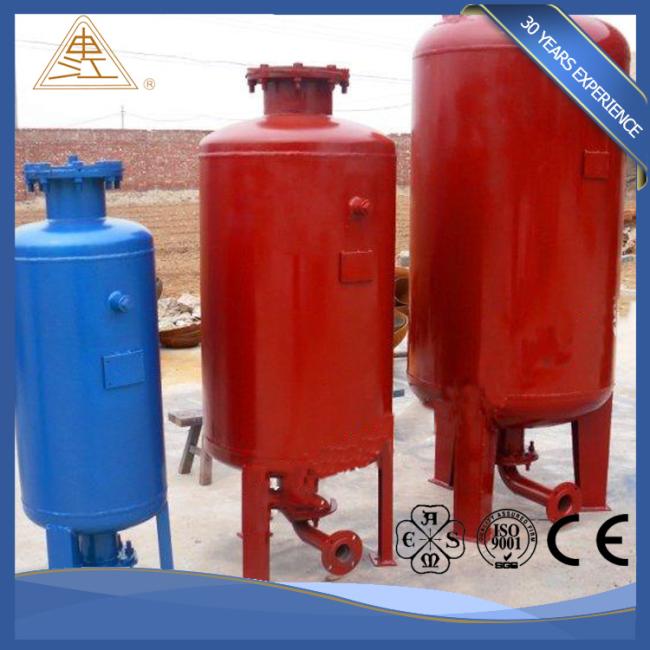

Water Pump System Diaphragm Pressure Tank , High Pressure Water Storage Pressure Tank
working principle of diaphragm pressure tank:
Wide availability of liquid filtration equipment. It can effectively remove liquid particles of different sizes, so as to achieve liquid filtration, purification, separation, recycling purposes.
Performance characteristics
The small size pressure-stabilization expension tank works as a special device to set the expansion section and gas pressure stablization section seperately,therefore,majority of the expansion volume could be storage expansion tank,the ultilization volume could reach 90% of the total volume,the whole bulk and height becomes smaller and smaller,which saves 50% to 60% of the whole occupation,it is also be convenient for the installation and working for the equipment.
Application scope:
1. continuous heating water system.
2. industrial and residential continuous heating system.
3. high temperature water circulating system.
4.hot and cold water system.
More specification for your choice !!!
| Diameter (mm) | Pressure (MPA) | Total Height (mm) | Total Weight (Kg) | Thickness (mm) | Total Capacity (m3) | Volume (Liter) | Outlet Diameter (mm) |
| 400 | 1.0 | 1230 | 97 | 3.5 | 0.09 | 30 | 50 |
| 1.6 | 111 | 5 | 50 | ||||
| 600 | 0.6 | 1720 | 144 | 3.5 | 0.32 | 90 | 50 |
| 1.0 | 181 | 4.5 | 50 | ||||
| 1.6 | 233 | 7 | 50 | ||||
| 800 | 0.6 | 2230 | 228 | 4 | 0.77 | 217 | 100 |
| 1.0 | 323 | 6 | 100 | ||||
| 1.6 | 323 | 6 | 100 | ||||
| 1000 | 0.6 | 2370 | 351 | 5 | 1.28 | 400 | 100 |
| 1.0 | 478 | 7 | 100 | ||||
| 1.6 | 490 | 7 | 100 | ||||
| 1200 | 0.6 | 2741 | 572 | 6 | 2.2 | 677 | 100 |
| 1.0 | 605 | 6 | 100 | ||||
| 1.6 | 766 | 8 | 100 | ||||
| 1400 | 0.6 | 2969 | 721 | 6 | 3.3 | 970 | 100 |
| 1.0 | 736 | 6 | 100 | ||||
| 1.6 | 1036 | 9 | 100 |
