F0 23b Tower Crane 10tons Construction Of High-rise Buildings
F0 23b Tower Crane 10tons Construction Of High-rise Buildings
Features
1. Safe and efficient control system.
2. Lifting mechanism is controlled by variable frequency speed control system, multipolar winding motor, resistance speed regulator and pole conversion speed regulator.
The speed regulator functions well, can be braked effectively and shift gears smoothly.
3. Thick, short and welded big rolling device improves rope rolling effeciency and lengthen the steel rope lifespan.
4. CRV stepless speed regulator and PLC central controller are combined into one.
5. Computer programme control, the signal reflect back, the faults can be displayed and be automatically protected.
Specification
| Foundation | Cross beam, well frame, outrigger or base with ballast type |
| Freestanding height | 50 meters |
| Max. height | 180 meters |
| Max. radius | 50 meters |
| Jib end load | 2.3 t |
| Max. load | 10 t |
| Drum capacity | 500 meters |
| Lifting speed | 0-100 and 0-50 m/min |
| Slewing speed | 0-0.6 r/min |
| Trolley speed | 0-60 m/min |
| Power line voltage | 380V/50Hz (60Hz) or others |
| Counter weight | Stell-structured frame (without concrete) |
| Mast section | 1.835 x 1.835 x 2.5m (block type) |
Competitive Advantage
1. Focusing on tower crane exporting for 15 years;
2. Preferential ex-factory price, excellent product quality and good after-sales service are our pursuit;
3. Our tower cranes had exported to more than 20 countries, such as Vietnam, Philippines, Indonesia, India, Sri Lanka, Cambodia, Russia, Kazakhstan, Brazil, Cyprus, Belgium, Madagascar and Algeria etc.
4. Factory visit is welcomed.
5. If you need, engineers will go to the construction site for guiding the installation and test-running.
6. Easy-worn Spare parts are free supplied along with the tower crane.
7. 12 months super long time guarantee period.
Our Team
Our R&D team is made up of the most prestigious, experienced engineers and experts in this field. Our technicians team are all experienced senior mechanicians.
We provide satisfactory service (pre-sale, while-sale, after-sale).
Our professional advice and instruction is always available.

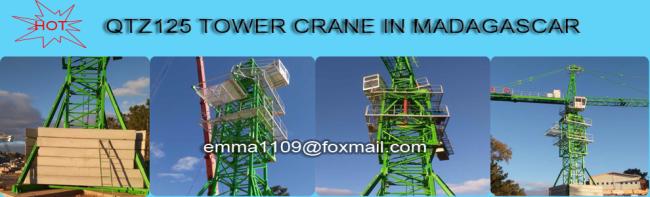

Pictures
