Hot TC6036 Tower Crane H3/36B 12tons 60m Boom With Luxury Cab Room
Hot TC6036 Tower Crane H3/36B 12tons 60m Boom With Luxury Cab Room
Description
1. This series tower crane is characterized by horizontal jib frame, trolley travel, slewing self-climbing, novel structure and reliable running.
2. All accessories are adopted from home famous brands and electrical components
from international famous brands.
3. "Quality First" is not just a slogan, which has already deeply rooted in ALCASS People's soul, besides we will also make all your purchases in unlimited satisfaction with star-rated after-sales services.
Specification
| Model | H3/36B TC6036 Tower Crane | |
| Working Radius (m) | 60 | |
| Max. Load Capacity (T) | 12 | |
| Tip Load (T) | 3.6 | |
| Free standing height (m) | 50 | |
| Max. Height with anchorages (m) | 180 | |
| Mast Section dimension (m) |
2×2×3, Angle steel 200×20mm |
|
|

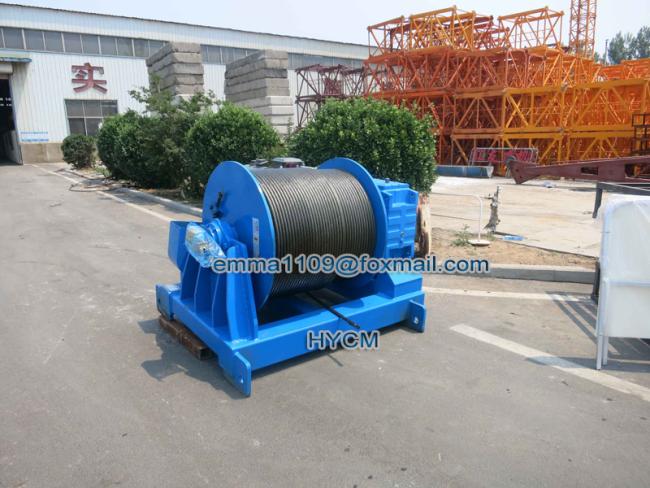

Hoisting Mechanism
|
Speed (m/min) | 0-100 0-50 |
| Motor power (kw) | 45 | |
|
Slewing Mechanism
|
Speed (r/min) | 0-0.6 |
| Motor power (kw) | 2*5.5 | |
|
Trolleying Mechanism
|
Speed (m/min) | 0-60 |
| Motor power (kw) | 5.5 | |
|
Jacking-up System
|
Speed (m/min) | 0.4 |
| Motor power (kw) | 5.5 | |
| Total Power (kw) | 61.5 | |
| Power Supply | 380V/50Hz, 220V/60Hz or others | |
Feature
1. For maximum efficiency in minimum space, this big model top kit tower crane provide all the advantages of power, safety and ergonomics.
2. Jib with radius up to 60 m, with simple, rapid erection
3. Integrated system of mechanised and radio controlled raising of jib and counter-jib tie bars
4. High productivity with LVF hoist winches and VFD control
5. High precision due to the split mast technologies

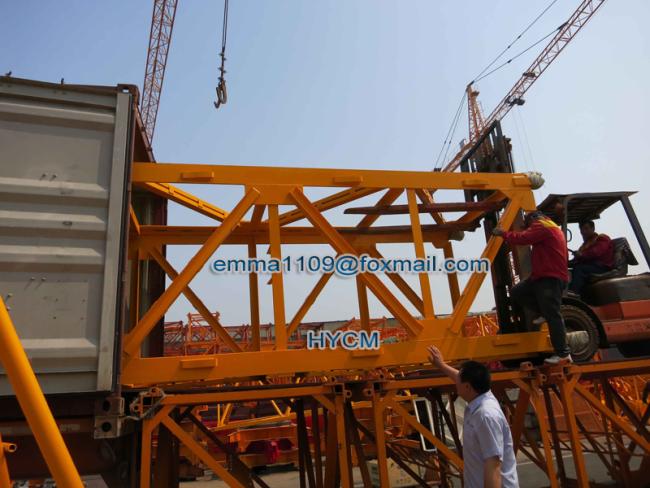

Pictures
