Hammerhead Tower Crane Chinese 70m Jib 16ton Kind of Tower Crain
Hammerhead Tower Crane Chinese 70m Jib 16ton Kind of Tower Crain
Description
1. This series tower crane is characterized by horizontal jib frame, trolley travel, slewing self-climbing, novel structure and reliable running.
2. All accessories are adopted from home famous brands and electrical components
from international famous brands.
3. "Quality First" is not just a slogan, which has already deeply rooted in HYCM People's soul, besides we will also make all your purchases in unlimited satisfaction with star-rated after-sales services.
Specification
| Foundation | Fixed Angle or base with ballast type |
| Freestanding height (M) | 50-60 |
| Max. Height (M) | 183 |
| Max. Radius (M) | 70 |
| Jib end load (T) | 3.0 |
| Max. Load (T) | 16 |

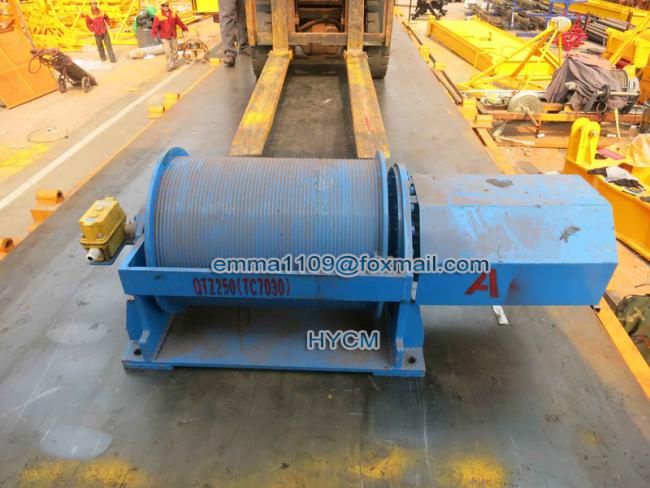

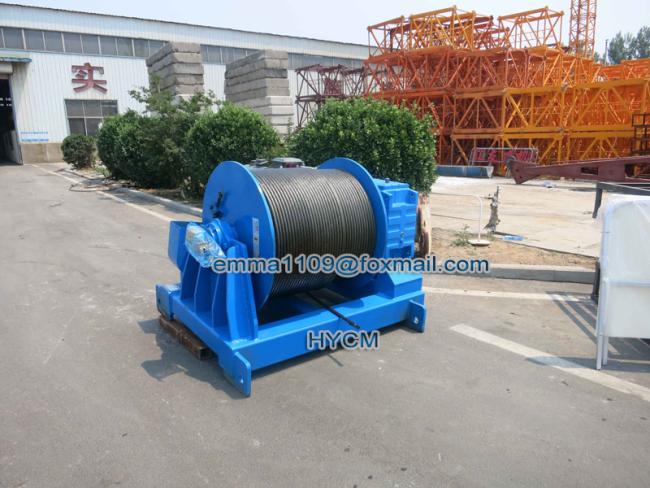

| Drum capacity (M) | 550 |
| Lifting speed (M/MIN) | 0-100 and 0-50 |
| Slewing speed (R/MIN) | 0-0.6 |
| Trolley speed (M/MIN) | 0-60 |
| Power line voltage | 380V/50Hz (60Hz) or others |
| Counter weight | Stell-structured frame (without concrete) |
| Mast section (M) | 2 x 2 x 3 (Split type) |
The process features
1): Automatic submerged arc welding is adopted in the main section limbs and chord boom. It has high thermal efficiency, high penetration, high production efficiency, while reducing the pores and crack defects, increases the weld strength and the beautiful appearance.
2): We adopt carbon dioxide gas welding; it has heat concentrated, a small welding line, high strength and resistance to rust and crack. it can reduce tress and deformation, it has high strength and resistance to rust and crack.
3): Shot blasting is used for masts to strength the hardness of steel surface; enhance the paint adhesion and prolonging its life
