Manual TC4807 Telescopic External Climbing Tower Crane 4 Ton 48M Boom or Jib
Manual TC4807 Telescopic External Climbing Tower Crane 4 Ton 48M Boom or Jib
Quick Details
1) We are a professional manufacture of construction machineS, have ISO, CE , GOST certification, high quality and competitive price
2) Tower crane is a combination of advanced technologies from home and abroad, it is equipped with a hydraulic self-raising mechanism and frequency-converting slewing mechanism.
3) The crane has a complete set of safety devices, which can guarantee the safety and high efficient operation of the equipment, It is equipped with height limiter, moment limiter, radius-changing limiter and weight limiter, etc.
4) Our products have been exported to many countries and areas in Europe, America, Australia, the Middle East and Southeast Asia etc.
Specification
| Rated Lifting Moment (KN.M) | 400 |
| Type | Fixed with tower head |
| Rated Loading Capacity (t) | 4 |
| Max. Lifting Load (t) | 4 |
| Tip Load (t) | 0.7 |
| Max. Lifting Height (m) | 120 |
| Free standing height (m) | 29 |
| Rope length (m) | 320 |
| Span (m) | 48 |
| Working range (m) | 3 to 48 |
| Slewing speed (r/min) | 0.7/0.35 |
| Trolley peed (m/min) | 38.6/25.2 |
| Jacking-up speed (m/min) | 0.4 |
| Counter jib length (m) | 12.89 |
| Power supply | 380V/50Hz or according to client's requirements |
| Power Capacity (kw) | 24.9 |
| Electric switch box | Schneider |
| Hoisting speed (m/min) | (a=2) 64.15/32.57/7.0; (a=4) 32.14/15.60/3.5 |
| Mast section (m) | 1.5*1.5*2.2m (140*12 /angle steel /Q235B) |
Abroad markets: The Middle East Regions, Southeast Asia, Africa, Russia, ect.
Certificate: ISO9001-2008, CE, GOST

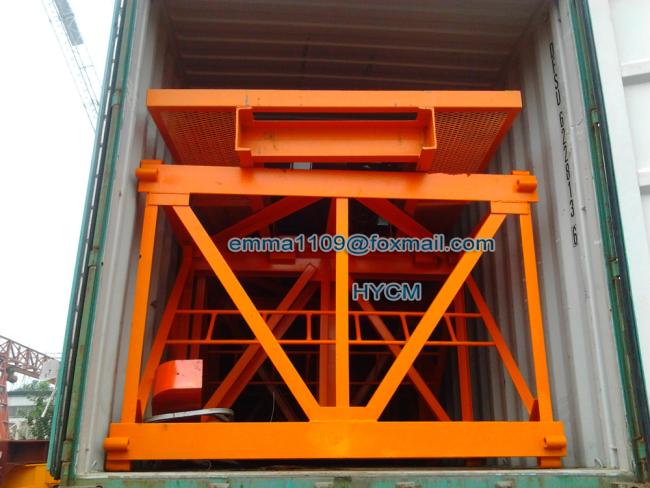

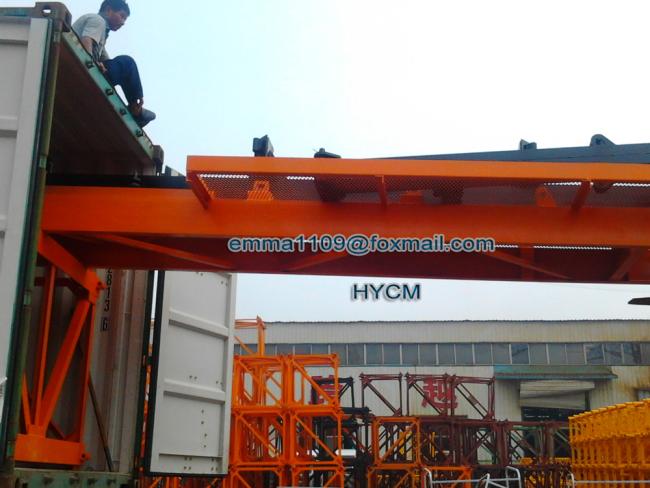

Package: nude in 6*40"HQ or 7*40’HQ container
Payment terms: 30% in advance, 70% balance payment before shipment date
Delivery time: 30 workdays after receiving 30% advanced payment
Warranty: 12 months from the bill date (arrival of destination). And overseas service center is available.
Material: Q235 or 345 manganese steel
MOQ: 1 set (the more you buy, the cheap it is)
