650MM Mast Sections Building Construction Hoist Spare Parts 1.508m Height

650MM Mast Sections Building Construction Hoist Spare Parts 1.508m Height

1. Our mast section is in high quality, stability and the structure is in high tension.

2. Our company enjoys very advantageous geographical location and convenient transportation. Welcome to visit our factory at any time!

Application for Construction Hoist of Mast Section

Main materials of Hoist Mast Section

a. High quality steel plate Q235B bended by special machine: Thickness 5mm

b. Welded steel tube Q345B ( Seamless steel tube 20# is also available): Ø76×4.5mm or Ø89×4.5mm (Thickness of 6mm or 8mm is also available)

Electro-static coating Specifications: 650*650*1508mm or 800*800*1508mm

Being Galvanized Specifications: 650*650*1508mm or 800*800*1508mm

Master Section For Construction Hoist

Model NO.: 650*650*1508mm

Standard: BS

Forming: Cold Drawn Steel

Member: Steel truss

Carbon Structural Steel: Q235, Q345

Application: Building Elevator, Construction hoist for Building Construction Projects

Transport Package: Naked by Containers

Origin: Shandong, China

Connection Form: Bolts Connection

Type of Steel For Building Structure: Fire - Resistant Steel

Customization: Yes

Specification: 650*650*1508mm

HS Code: 84313900

About the mast section:

SC series lift standard section offer hot galvanizing process,

Each Section With Four 10.9 Dacromet Process High Strength Bolts,M16*85 High Strength Bolts

This Section Of The Standard Section Is: 650mm, 800mm; Height 1508mm The Price Of The Main Branch Diameter 76mm, 89mm; Thickness Of 4.5mm And 6mm.

After Boring Through a Dedicated CNC Machine Cut, Welded Precision Higher than The National Standard.

Rack Material Is LG60, To Ensure The Rack Quality Superior Than Counterparts.

The Mast Section (Color Is Variable) Is Made Of Seamless Tube Or HF Welded Tube.

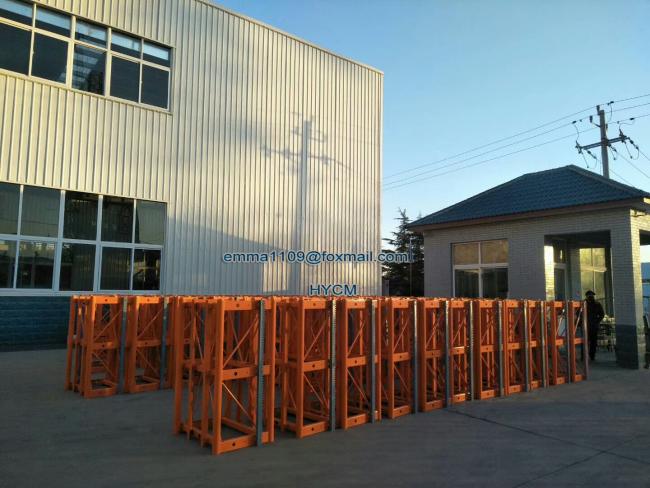

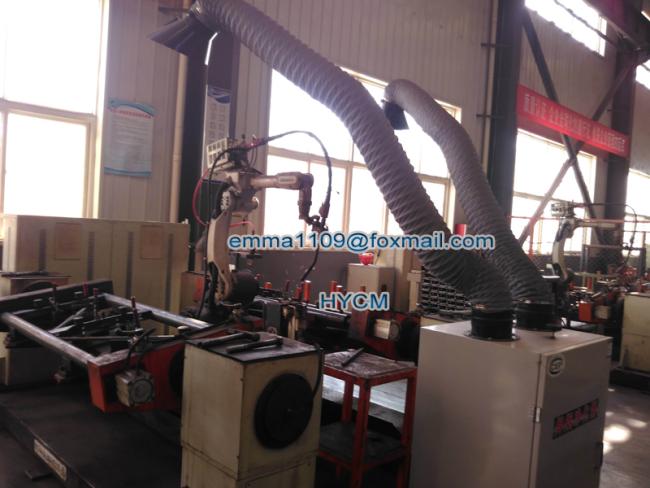

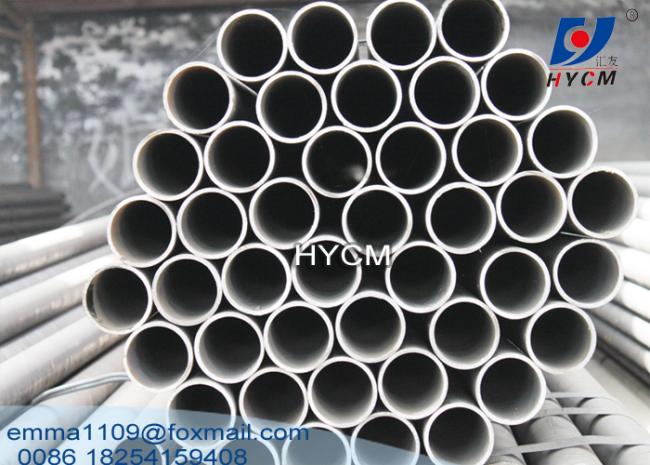

Photos
