SMT Type Y Type Female Header 2.54 Pitch PA9T Black Gold Flash
Price:
negotiaiton
MOQ:
1000pcs
Delivery Time:
15~25Day
Brand:
WCON
Product Description
Y Type Female Header 2.54 Pitch SMT Type PA9T Black Gold Flash ROHS

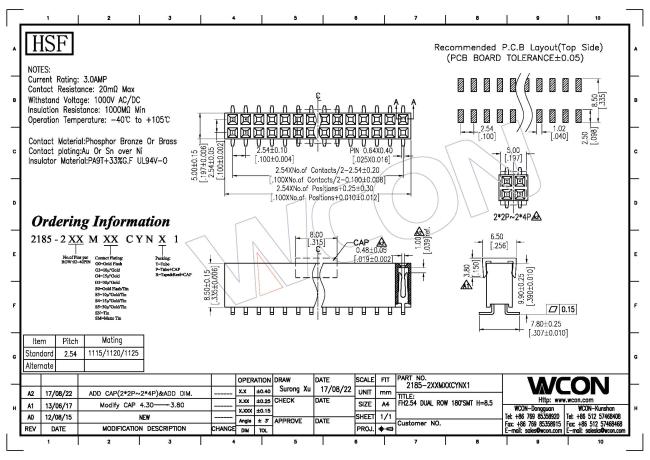

Drawing: female header 2185-2XXMXXCYNX1.pdf
Pin headers are solid metal connectors that are soldered to the board and stand up to receive connections from the female socket. While pin headers (often referred to as PH or pin headers) are by definition male, their female counterparts are also common and we refer to them as female (FH) or pin header connectors. 5
| 10.Item name: female connector | ||||||||
| product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance | ||||||||
| product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0 | ||||||||
| scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection. |
| 1.Current Rating | 3.0AMP |
| 2.Contact Resistance | 20mΩ Max |
| 3.Withstand Voltage | 1000V AC/DC |
| 4.Insulation Resistance | 1000mΩ Min |
| 5.Operation Temperature | ﹣40℃ to +105℃ |
| 6.Contact Material | phosphor Bronze |
| 7.Contact Plating | AU over Ni |
| 8.Insulator Material | PA9T+30％GF UL94V-0 |
