1.27mm PCB Female Header / 20 Pin Header Connector 180°DIP PPS 30％GF UL94V-0
Price:
Negotiation
MOQ:
1000pcs
Delivery Time:
15-25 Working Days
Brand:
WCON
Product Description

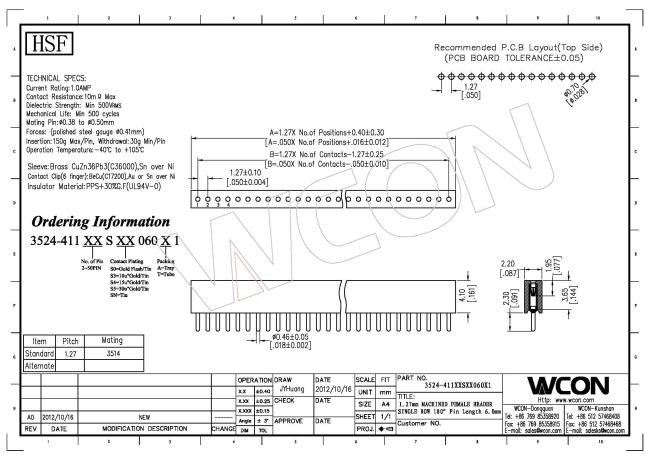

1.27mm Michined Female WCON Connector 1*20P 180°DIP PPS+30％GF UL94V-0
| Current Rating | 1.0AMP |
| Contact Resistance | 10mΩ Max |
| Dielectric Strength | Min 500VRMS |
| Mechanical Life | Min 500 cycles |
| Mating Pin | Φ0.38 to Φ0.50mm |
| Forces | polished steel gauga Φ0.41mm |
| Insertion | 150g Max/Pin, Withdrawal:30g Min/Pin |
| Operation Temperature | ﹣40℃ to +105℃ |
| Sleeve | Brass CuZn36Pb3(C36000),Sn over Ni |
| Contact Clip(6 finger) | BeCu(C17200),Au Or Sn over Ni |
| Insulator Material |
PPS+30%GF(UL94V-0) |
Product Name: Michined pin connector
1. Pcb Female Header features: the contact reliability, anti vibration, contact resistance
2. Pcb Female Header material: PPS, PA46 or PA6T insulator part plastic insulator part fire rating: UL94V-0 contact: brass parts
3. scope of application: PCB computer communication cable, LED integrated circuit IC power car display
