Data Communication 10 ~ 100P Pcb Header Connector 1.27mm Pitch
Price:
Negotiation
MOQ:
1000pcs
Delivery Time:
15-25Day
Brand:
WCON
Product Description

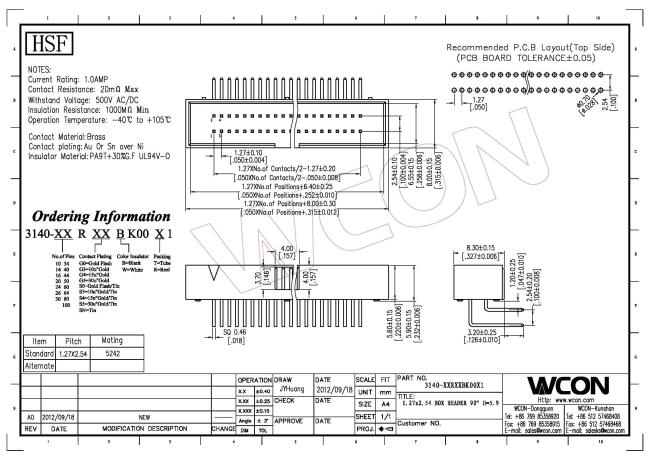

1.27*2.54mm H=5.9 Box Header Connector DIP PA9T 30％GF UL94V-0 Brass Gold Flash
| Current Rating | 1AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | Brass |
| Contact Plating | Au or Sn over Ni |
| Insulator Material | PA9T +30％GF( UL94V-0 ) |
Product name: Ejector Header Connector
1. Product features: high temperature resistant to high voltage electrical conductivity
2. Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating
3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal
