1.0mm Dual ROW SMT Pin Header Connector Single GF Brass Gold Flash
Price:
negotiaiton
MOQ:
1000pcs
Delivery Time:
15-25Day
Brand:
WCON
Product Description

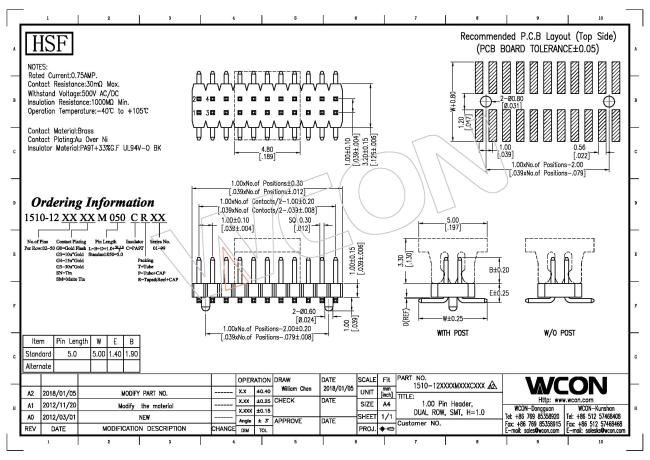

1.0mm DUAL ROW SMT PA9T Black Pin Header Connector Single GF Brass Gold Flash
| Rated Current | 0.75AMP |
| Contact Resistance | 30mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | Brass |
| Contact Plating | Au over Ni |
| Insulator Material | PA9T Black+30％GF UL94V-0 BK |
| Product Name:1.0mm pin connector | |||
| 1. features: the use of a wide range of environmental protection fireproof anti-oxidation conductive and strong, to be blocked in the circuit between the circuit or isolated, to the bridge function, assume the current or signal transmission task. | |||
| 2. material: it is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel. | |||
| 3. scope of application: pin are widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. As the most reliable connection plate to plate, wire to board provides. |
