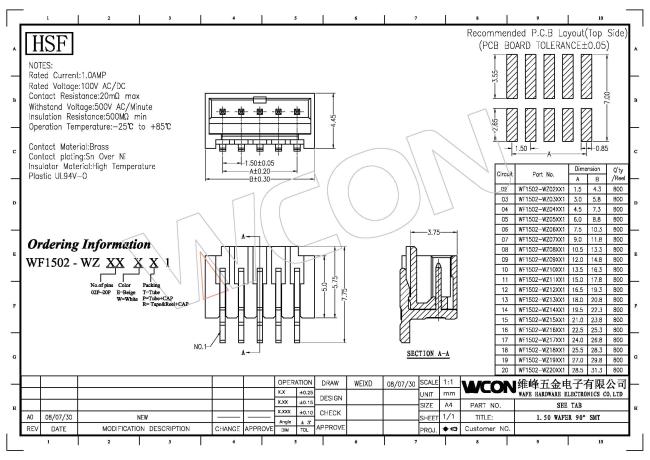

1.5 mm Wafer Male Printed Circuit Board Connectors 02~20P 90° SMT
1.5mm 02~20P 90°SMT Wafer Wire To Board Connector Sn Plated
| Rating Current | 1.0AMP |
| Rated Voltage | 100V AC/DC |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/Minute |
| Insulation Resistance | 500mΩ Min |
| Operation Temperature | -25℃ to +85℃ |
| Contact Material | Brass |
| Contact Plating | Sn Over Ni |
| Insulator Material | High Temperature Plastic UL94V-0 |
Product Name: Wafer connector
1. Features: it makes the production process more convenient, more flexible design, reduces the
production and maintenance cost, easy repair, and easy to upgrade, improve the flexibility of design
2. Material: (UL94V-0) PA9T, PA6T, PA46, PA66 etc.
3. Scope of application: used in computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical and electronic products production, military and aerospace industry in which the device connecting the two active devices, current or signal transmission.
