WCON 2.0mm IDC Connector Socket WCON Female PBT black Cable Connector

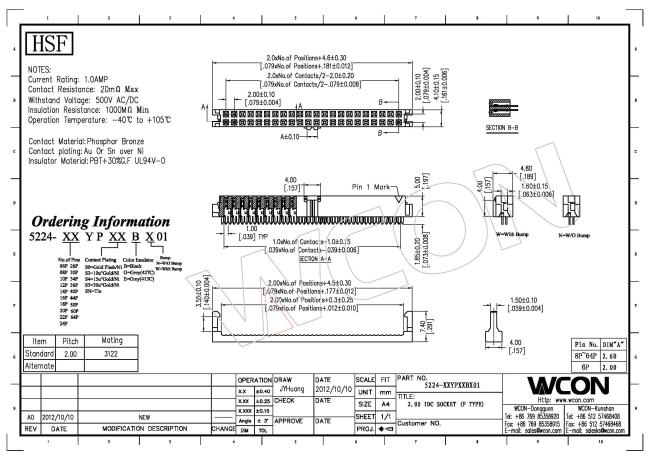

2.00mm IDC Socket Connector With Bump PBT Phosphor Bronze Sel Au/Sn 06~64P
| Current Rating | 1.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | phosphor Bronze |
| Contact Plating | Au Or Sn over Ni |
| Insulator Material | PBT+30%GF UL94V-0 |
Product Name: IDC connector
1. Product features: contact system has been used to the level of automation test impact, vibration, and temperature cycling also proved their reliability and ruggedness. High temperature insulator up to 260 degrees Celsius reflow soldering process
2. Insulating material: nylon 46:UL94V0 contact materials: phosphor bronzeTin plating: nickel PBT
3. Scope of application: to be blocked in the circuit between the circuit or isolated bridge of communication, so that the current flow of the circuit, and achieve the intended function. 1 Introduction to PCB power supply and signal 2 discrete wire assembly is connected directly to the PCB
