0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze.

Name: 0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze.
Brand: WCON ELECTRONICS ( GUANGDONG) CO., LTD

Price Negotiable

Price: Negotiable. It depends on the customers' requests.

MOQ: 1000pcs

Delivery Time: 15-25Days

Brand: WCON

Product Description

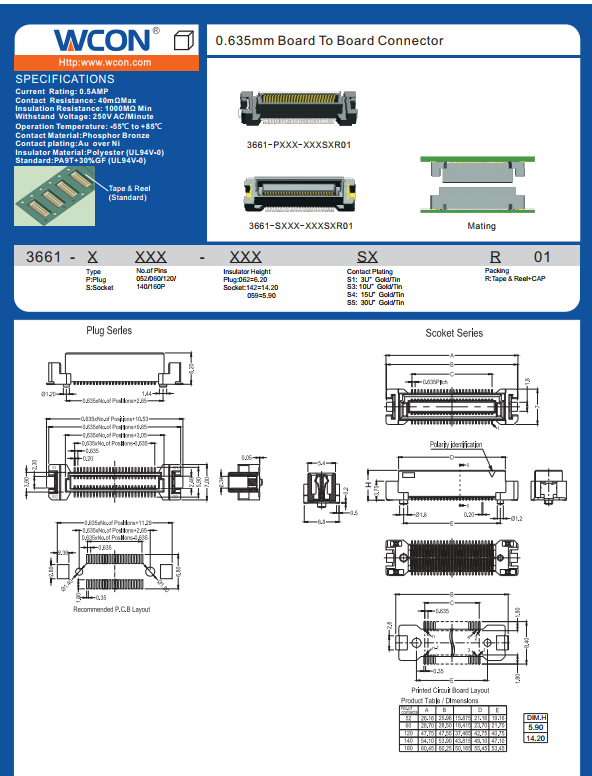

0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze.

Products Issues	Products Descriptions
Products Characteristics	1 The first feature is that BTB has a flexible connection and it's easy to install and remove. 2 The board-to-board connector ultra-low height to achieve the purpose of thinning the body thickness. 3 In order to meet the requirements of the SMT process, the entire product terminal welding area are strictly required to have good coplanarity. 4 Board-to-board connectors can be simple construction of machine circuit design. By setting up an insulating wall on the bottom of the connector so that the PCB board alignment and metal terminals can be wired on the bottom of the connector without contact. 5 Contact structure with superb environmental resistance can not only be flexible, but also the use of high contact reliability of the "solid connection" can improve the socket and plug combination force.
Products Specifications	Current Rating	0.5AMP
	Contact Resistance	40 Milliohm Max
	Insulation Resistance	1000 Milliohm Min
	Withstand Voltage	250V AC/Minute
	Operation Temperature	-55℃ to +85℃
	Contact Material	Phosphor Bronze
	Contact Plating	Au Over Ni
	Insulator Material	Polyester(ul94V-0)
	Standard	PA9T+30%GF(UL94V-0)
Products Applications	It is mainly used in electric power system, communication network, financial manufacturing, elevator, industrial automation, medical equipment, office equipment, home appliances, military manufacturing and other industries.
