0.8mm Pitch Male Straight Connector SMT PA9T UL94V-0 Board To Board D Type
Price:
Negotiation
MOQ:
1000pcs
Delivery Time:
15-25Day
Brand:
WCON
Product Description

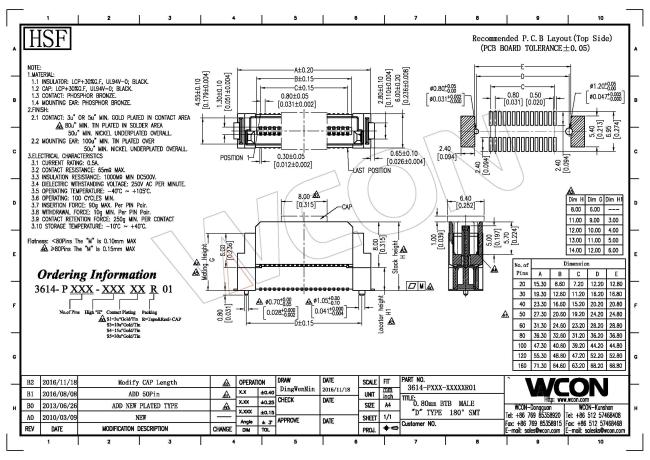

0.8mm Pitch Male 180° SMT PA9T UL94V-0 Board to Board Connector D Type
| Current Rating | 0.5AMP |
| Contact Resistance | 65mΩ Max |
| Withstand Voltage | 250V AC/Minute |
| Insulation Resistance | 100mΩ Min |
| Operation Temperature | ﹣20℃ to +105℃ |
| Contact Material | Phosphor Bronze |
| Standard | LCP+30%GF |
| Contact Plating | Au Or Sn Over Ni |
| Product name: .0.8MM board to board Connector | ||
| 1. product characteristics: in the current connector transmission capacity of the strongest; a wide range of use, environmental protection, high temperature resistance, fire prevention, antioxidation, electrical conductivity, precision strong connection. | ||
| 2. material: UL94V-0, PA9T+30%GF, copper alloy material | ||
| 3. scope of application: power system, communication network, financial manufacturing, elevator, industrial automation, medical equipment, office equipment, home appliances, military manufacturing industry. |
