180°DIP PBT Famale Press - Fit Din41612 Connector Phosphor Bronze 2.54mm 3*32P
Price:
Negotiation
MOQ:
1000pcs
Delivery Time:
15-25Day
Brand:
WCON
Product Description

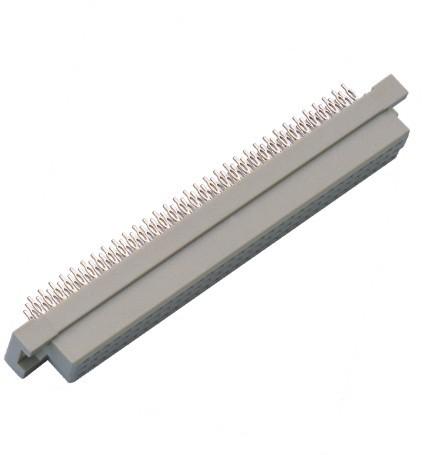

2.54mm 3*32P 180°DIP PBT Famale Press-Fit Din41612 Connector Phosphor Bronze
| Current Rating | 3.0AMP |
| Contact Resistance | 30mΩ Max |
| Withstand Voltage | 1000V AC/DC |
| Insulation Resistance | 1000mΩ |
| Operation Temperature | ﹣55℃ to +105℃ |
| Contact Material | Brass |
| Contact Plating | Au And Sn over Ni |
| Fixing Material | Phosphor Bronze |
| Fixing Plating | Sn over Ni |
| Insulation Material | PBT+30%GF(UL94V-0) |
Product Name: DIN41612 connector
1. the characteristics: the product precision and reliable performance, good force strong
2. material: 1 material: rubber core PBT plus 30% glass, terminal material: copper alloy.
3. scope of application: the product is widely applied to the backplane and the daughter board communications equipment, industrial control equipment connected with the backboard and the daughter board connection, and telecommunications, aerospace and other fields.
