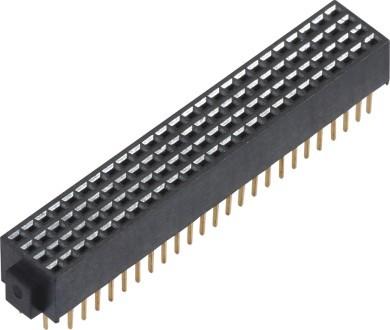

1.27mm 4*25Pin Female Header Connector phosphor Bronze Sample Free
1.27mm 4*25Pmm Female Header Connector phosphor Bronze Sample Free
| Current Rating | 1.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | phosphor Bronze |
| Contact Plating | Au Or Sn over Ni |
| Insulator Material | PA9T+30%GF UL94V-0 |
Product Name: female connector
1. features: the use of a wide range of environmental protection fireproof antioxidant strong conductivity
2. material: PA9T/PBT/ brass or phosphor bronze; dielectric materials: plastic UL 94V-0
3. scope of application: general are widely used in electronics, electrical appliances, instrument connection device mainly plays the role of a current or signal transmission. Usually with pin supporting the use, composition of board to board connection. Or with electronic wiring harness terminal supporting the use of, constitute the board of line connection.
