Female Male Db9 Connector Dual Row Right Angle D SUB FOR Communication
Price:
Negotiation
MOQ:
1000pcs
Delivery Time:
15-25Day
Brand:
WCON
Product Description
D-SUB on 9P Male Under 9P Female Dual Row Right Angle D-SUB Connector
| Currenr Rating | 5.0AMP |
| Contact Resistance | 25mΩ Max |
| Withstand Voltage | 1000V AC/DC |
| Insulation Resistance | 5000mΩ Min |
| Operation Temperature | ﹣55℃ to +105℃ |
| Contact Material | Brass |
| Contact Plating | Au Or Sn over Ni |
| Insulator Material | PBT+30%GF UL94V-0 |
| Shell Material | Spcc Plating Ni Plated |
| Rivet Harpoon | Brass Sn over Ni |
| Screw | Brass,Plating Ni Plated |
| Product Name: D-SUB connector | ||
| 1. features: the use of a wide range of environmental protection fireproof antioxidant electrical conductivity and long service life force is strong. | ||
| 2. material: PBT (green, black, white) plus fiber 30% UL94V-0 contact body material: brass (C3604) | ||
| 3. scope of application: used for connecting a computer, communication, medical equipment, wire and cable, aviation, digital, machinery and equipment, game consoles and other integrated circuit package pins and printed circuit board. |

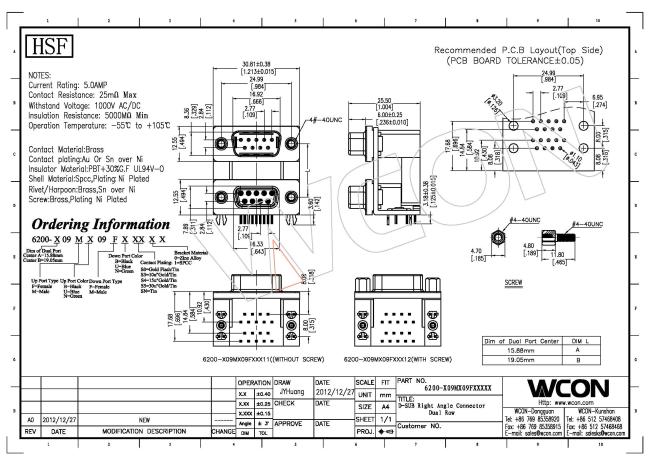

Drawing:D-SUB 6200-X09MX09FXXXXX.pdf
