WCON 2.54 mm Pitch Round Pin Header High Contact Reliability Single Row
Price:
Negotiation
MOQ:
1000pcs
Delivery Time:
15-25 Working Days
Brand:
wcon
Product Description
High Contact Reliability 2.54 Mm Pitch 12 Round Pin Header Min 500 Cycles
| 1. Current Rating | 3.0AMP |
| 2. Contact Resistance | 10mΩ Max |
| 3. Dielectric Strength | Min 1000VRMS |
| 4. Mechanical Life | Min 500 cycles |
| 5. Mating Pin | ∅0.40 To ∅0.56mm |
| 6. Forces | Polished Steel Gauge ∅0.47mm |
| 7. Insertion | 200g Max/Pin Withdrawal:60g/pin |
| 8. Operation Temperature | -40℃ to +105℃ |
| 9.Sleeve | Brass CuZn36Pb3(C36000) Sn over Ni |
| 10. Contact Clip(4 Finger) | BeCu(C17200) |
| 11. Insulator Material | PPS+30%GF(UL94V-0) |
| Product Name: Michined Female Header connector | ||
| 1.product features: high contact reliability, vibration resistance, small contact impedance. | ||
| 2.product material: insulation part PPS, PA46 or PA6T plastic insulation part of the fire rating: UL94V-0 contact part: Brass. | ||
| 3.scope of application: PCB computer communication cable LED integrated circuit IC power car monitor. |

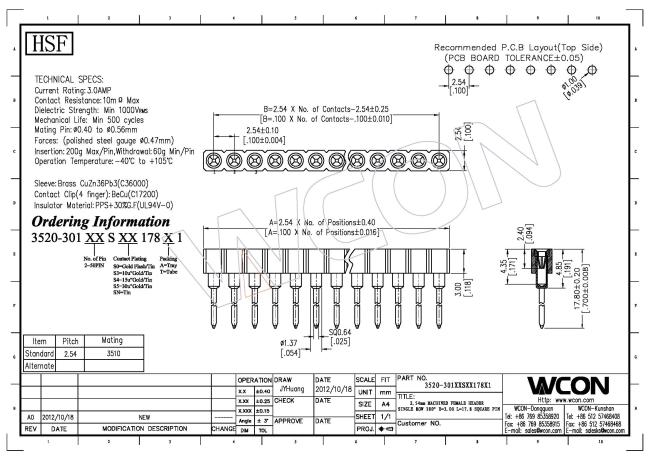

Drawing:Maching Female 3520-301XXSXX178X1.pdf
