WCON 2.54mm Single Row Round Machined Female Header H=7.0 PCB Connector ROHS
Price:
Negotiation
MOQ:
1000PCS
Delivery Time:
15-25 Working Days
Brand:
WCON
Product Description

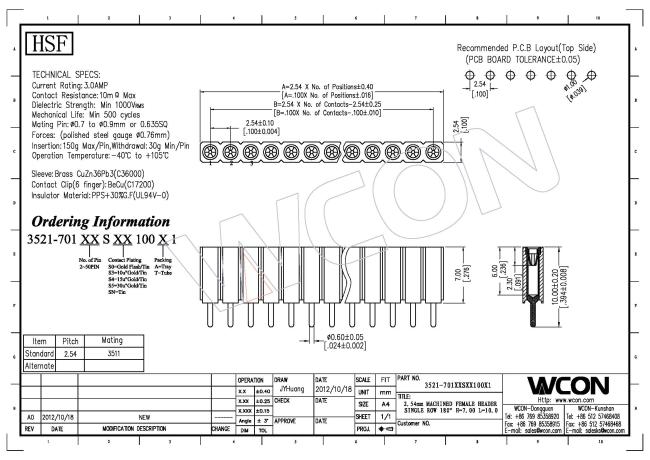

2.54 Mm Machined Female Round Pin Header Single Row Pin Header PCB Connector
| 1. Current Rating | 3.0AMP |
| 2. Contact Resistance | 10mΩ Max |
| 3. Dielectric Strength | Min 1000VRMS |
| 4. Mechanical Life | Min 500 cycles |
| 5. Mating Pin | ∅0.70 To ∅0.9mm Or 0.635SQ |
| 6. Forces | Polished Steel Gauge ∅0.76mm |
| 7. Insertion | 150g Max/Pin Withdrawal:30g/pin |
| 8. Operation Temperature | -40℃ to +105℃ |
| 9.Sleeve | Brass CuZn36Pb3(C36000) |
| 10. Contact Clip(6 Finger) | BeCu(C17200) |
| 11. Insulator Material | PPS+30%GF(UL94V-0) |
| Product Name: 2.54mm Michined Female Header connector | ||
| 1.product features: high contact reliability, vibration resistance, small contact impedance. | ||
| 2.product material: insulation part PPS, PA46 or PA6T plastic insulation part of the fire rating: UL94V-0 contact part: Brass. | ||
| 3.scope of application: PCB computer communication cable LED integrated circuit IC power car monitor. |
