Female Header Connector Right Angle PA9T Gold Flash high temperature

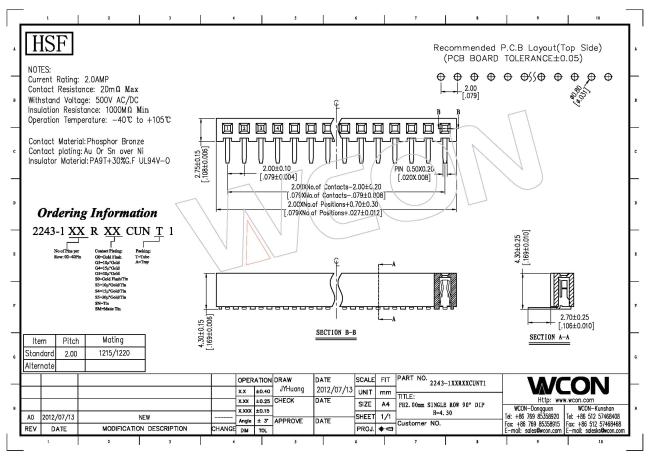

2.0 Female Header,Single Row,Right Angle PA9T BLACK H=4.3,W=2.75,DIP=2.0,Gold Flash,
| Current Rating | 2.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | phosphor Bronze |
| Contact Plating | AU over Ni |
| Insulator Material | PA9T+30％GF UL94V-0 |
Item name: female connector:
1.product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2.product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.
3.scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
