Right angle 2.54 mm Female header connector PA9T black gold flash ROHS
Price:
negotiaiton
MOQ:
1000PCS
Delivery Time:
15~25Day
Brand:
WCON
Product Description

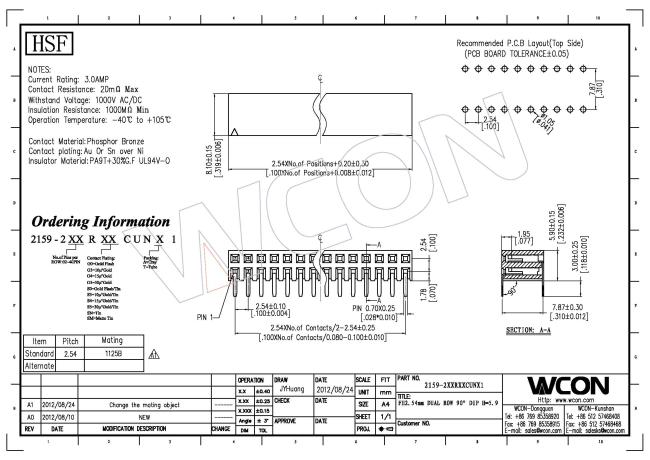

Right angle 2.54 mm Female header connector PA9T black gold flash ROHS
| Current Rating | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 1000V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | phosphor Bronze |
| Contact Plating | AU over Ni |
| Insulator Material | PA9T+30％GF UL94V-0 |
| Item name: 2.54mm female connector: | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0. | ||
| 3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection. |
