2.0mm H=6.35 Box Header Connector 2*3P Male Seat Current Rating 3.0AMP
Price:
Negotiation
MOQ:
1000pcs
Delivery Time:
15-25Day
Brand:
WCON
Product Description
2.0mm H=6.35 Box Header 180 degrees 2*3P Male seat connector
| Current Rating | 3.0AMP |
| Contact Resistance | 30mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Housing Material | PPA( UL94V-0 ) |
| Contact Material | Brass |
| Contact plating | Au over Ni plating |
| Product name: 2.54mm Ejector | ||
| 1. Product features: high temperature resistant to high voltage electrical conductivity | ||
| 2. Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating | ||
| 3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal |

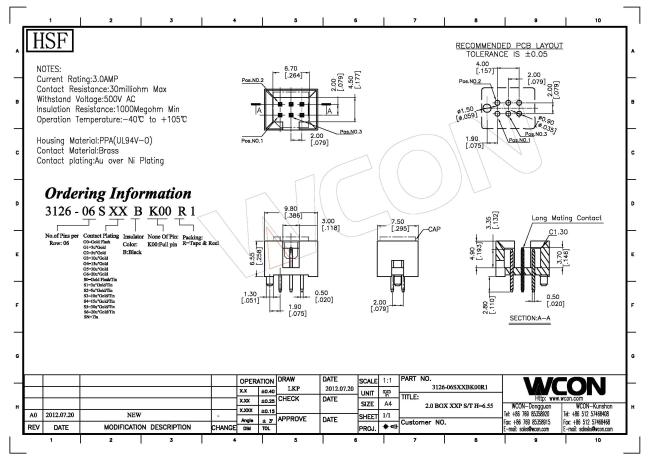

Drawing:Box Header 3126-06SXXBK00R1.pdf
