Double Row SMT 2.54mm Pitch Box Header Connector PCB Board End Connector
Price:
Negotiation
MOQ:
1000pcs
Delivery Time:
15-25Day
Brand:
WCON
Product Description
Item name: Ejector Header
1.Product material: PA9T/LCP/PBT plating surface treatment: gold or tin plating
2.Application scope: it is mainly used in communication and electronic equipment and data by welding on the PCB board, connecting the corresponding specifications of IDC cable and other circuit designers need to be welded on a PCB board, connecting the corresponding specifications of IDC cable and other circuit designers need
| Current Rating | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 1000V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | Brass |
| Contact Plating | Au or Sn over Ni |
| Insulator Material | PA9T +30％GF( UL94V-0 ) (Std) Or PBT+30%G.F UL94V-0 |

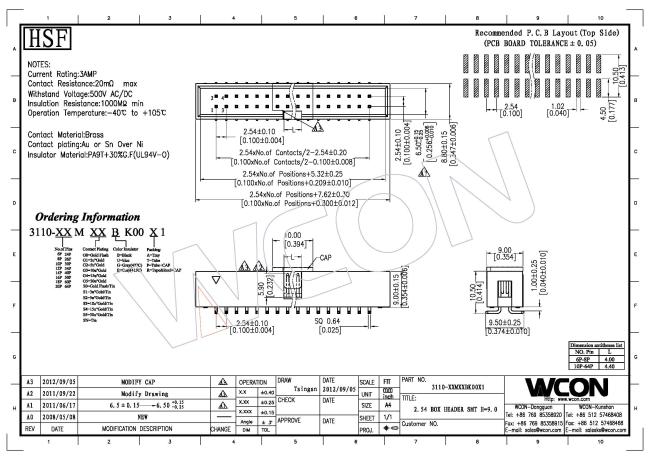

Double row SMT 2.54Pitch Box Header Connector PCB board end connector
