China PA9T Greyish White 2.54 Pitch Box Header 90 Degrees Bend Pcb Header Connector for sale
China PA9T Greyish White 2.54 Pitch Box Header 90 Degrees Bend Pcb Header Connector for sale
China PA9T Greyish White 2.54 Pitch Box Header 90 Degrees Bend Pcb Header Connector for sale

PA9T Greyish White 2.54 Pitch Box Header 90 Degrees Bend Pcb Header Connector

Price Negotiable
Price: Negotiation
MOQ: 1000pcs
Delivery Time: 15-25Day
Brand: WCON
Product Description

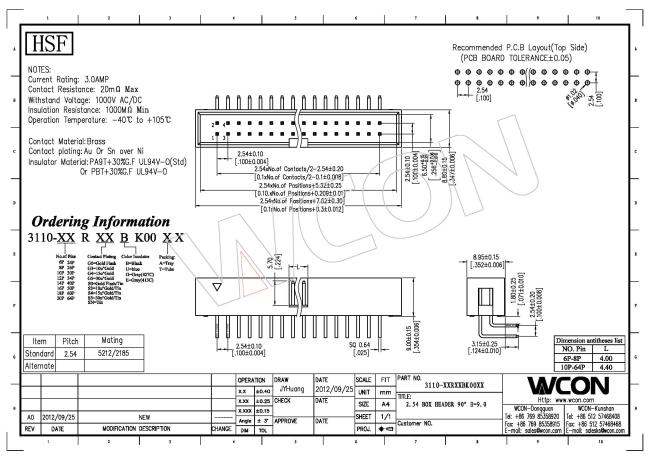

PA9T Greyish white 2.54Ptch Box Header Connector 90 degrees bend





Current Rating 3.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material Brass
Contact Plating Au or Sn over Ni
Insulator Material PA9T +30％GF( UL94V-0 )





Item name: Ejector Header
Product material: PA9T/LCP/PBT plating surface treatment: gold or tin plating
Application scope: it is mainly used in communication and electronic equipment and data by welding on the PCB board, connecting the corresponding specifications of IDC cable and other circuit designers need to be welded on a PCB board, connecting the corresponding specifications of IDC cable and other circuit designers need





1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30％GF UL94V-0
