2.54mm Latch Header Board To Wire Connectors T Type Housing H=15.10mm
Price:
Negotiation
MOQ:
1000pcs
Delivery Time:
15-25Day
Brand:
WCON
Product Description

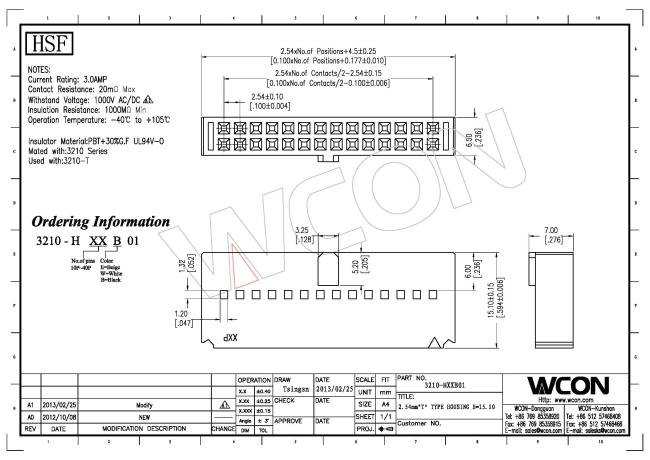

2.54mm Latch Header Board To Wire Connectors T Type Housing H=15.10mm
| Current Rating | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 1000V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Insulator Material | PBT+30％GF UL94V-0 |
| Mated with | 3210 Series |
| Uesd with | 3210-T |
Product Name: Ejector Header
1.features: high temperature resistance, high voltage electrical conductivity
2.material: PA9T/LCP/PBT plating surface treatment: gold or tin
3. scope of application: mainly applicable to communications and electronic equipment and the use of data, is welded on the PCB plate, connecting the corresponding specifications of IDC cable and other circuit designers require, reach the circuit. Usually the transmission control signal and if the current
