2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End
Price:
Negotiation
MOQ:
1000pcs
Delivery Time:
15-25Day
Brand:
WCON
Product Description
product details
technical parameter
| Rated Current | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 1000V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣25℃ to +85℃ |
| Pin Material | Brass |
| Contact Plating | Sn over Ni |
| Insulator Material | Polyester(UL94V-0) |
| Standard | PA66 |
Feature description
Item name: Wafer connector
1. product features: it makes the design and production process more convenient, more flexible, reducing production and maintenance costs, easy maintenance, easy to upgrade, improve design flexibility
2. product material: (UL94V-0) PA9T, PA6T, PA46, PA66 and so on
1. product features: it makes the design and production process more convenient, more flexible, reducing production and maintenance costs, easy maintenance, easy to upgrade, improve design flexibility
2. product material: (UL94V-0) PA9T, PA6T, PA46, PA66 and so on

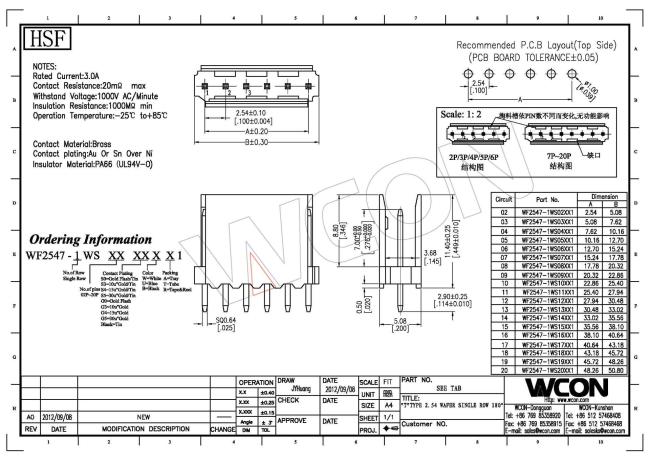

Drawing
![undefined]()
Instructions
Wafer connector is mainly used for board to line connection, there is a pair of line ends Housing and terminals, the plate end of the Wafer insert PCB board, line end assembled good electronic line, and the plate end of Wafer pairs inserted into, forming a plate to line connection
Wafer connector is mainly used for board to line connection, there is a pair of line ends Housing and terminals, the plate end of the Wafer insert PCB board, line end assembled good electronic line, and the plate end of Wafer pairs inserted into, forming a plate to line connection
Packing list
Boxed tube
Boxed tube
Applications / applications
Application: apply to computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical electronic products, the production of military and aerospace industry in which the device connecting the two active devices, current or signal transmission.
Application: apply to computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical electronic products, the production of military and aerospace industry in which the device connecting the two active devices, current or signal transmission.
Product picture
![]()
Drawing Download
