2.54mm pitch latch header PBT black brass 10 - 60 pins mating with 5212 / 5211
Price:
Negotiable. It depends on the customers' requests.
MOQ:
1000 pcs
Delivery Time:
15~25 Days
Brand:
WCON
Product Description
2.54mm pitch latch header PBT black brass 10 - 60 pins

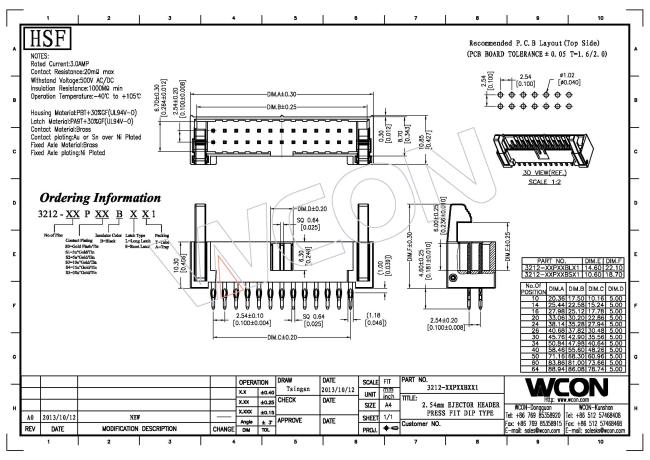

Drawing:Ejector Header 3212-XXPXXBXX1.pdf
| Products Issues | Products Descriptions | |
| Products Characteristics | The ejector header connector is one of many connectors. It's a European style connector, which is a variety of connectors classified according to the actual use. It is named after its resemblance to the shape of a cow's horn. The ejector header connector is a very simple internal wiring device to use. | |
| Products Specifications | Current Rating | 3.0AMP |
| Contact Resistance | 20 Milliohm Max | |
| Insulation Resistance | 1000 Milliohm Min | |
| Withstand Voltage | 1000V AC/Minute | |
| Operation Temperature | -40 ℃ to + 105 ℃ | |
| Contact Material | Brass | |
| Contact Plating | Au or Sn over Ni | |
| Latch Material | Zinc Alloy Latch Plating: Ni | |
| Insulator Material | 3211: PA9T + 33 % GF UL94V-0 | |
| 3212: PBT + 30 % GF UL94V-0 | ||
| 3212: PA9T + 33 % GF UL94V-0 | ||
| SMT Lead Coplanarity | 0.1mm max 02-40P | |
| 0.15mm max Above 40P | ||
| Products Application | Ejector header connectors are mainly used in automotive, industrial, transportation, military/aerospace, medical equipment, instrumentation, etc. | |
