WCON 15P Double Row D SUB Connector Female Straight Type PBT Black ROHS
Price:
negotiation
MOQ:
1000pcs
Delivery Time:
15~25 Working Days
Brand:
WCON
Product Description

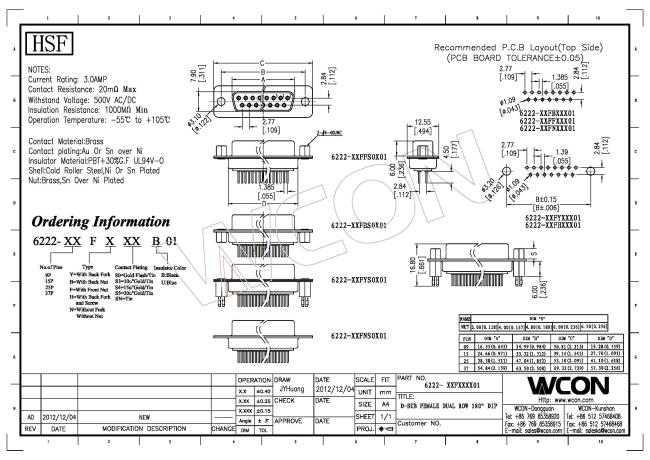

Drawing:D-SUB 6222-XXFXXXB01.pdf
| Item name: D-SUB connector | ||||||||
| product features: the use of a wide range of environmental protection, high temperature, fire resistance, strong resistance, long service life and strong force. | ||||||||
| product material: PBT (green, black, white) plus fiber 30% UL94V-0 contact material: brass (C3604) | ||||||||
| scope of application: used in computer, communications, medical equipment, cables, aviation, digital, machine equipment, game consoles and other integrated circuit packaging pins and printed circuit board connection. |
| Currenr Rating | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣55℃ to +105℃ |
| Contact Material | Phosphor Bronze/Brass |
| Contact Plating | Sel. An over Ni |
| Insulator Material | PBT+30%GF UL94V-0 |
| Shell | Cold Roller Steel, Ni Plated |
| Nut | Brass,Sn Over Ni Plated |
