With Bump 2.0 Female Header Connector dual row Straight PA9T Black W=4.0 Tube packing
Price:
negotiaiton
MOQ:
1000pcs
Delivery Time:
15~25Day
Brand:
WCON
Product Description
With Bump 2.0 Female Header dual row Straight PA9T Black W=4.0 Tube packing.
| Item name: female connector | ||||||||
| product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance | ||||||||
| product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0 | ||||||||
| scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection. |
| Current Rating | 2.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | phosphor Bronze |
| Contact Plating | AU over Ni |
| Insulator Material | PA9T+30％GF UL94V-0 |

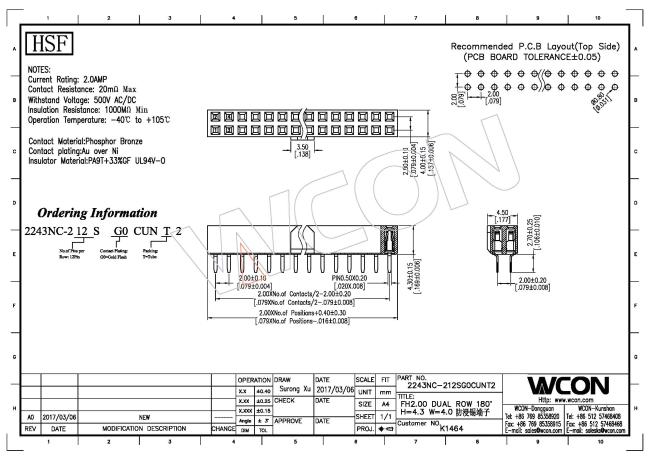

Drawing:Female header 2243NC-212SG0CUNT2.pdf.
