2.54mm Machined Female 2*3P Right Angle Round Pin Header Gold Flash / Sn PPS ROHS
Price:
negotiation
MOQ:
1000pcs
Delivery Time:
15~25 Working Days
Brand:
WCON
Product Description
| 1. Current Rating | 3.0AMP |
| 2. Contact Resistance | 10mΩ Max |
| 3. Dielectric Strength | Min 1000VRMS |
| 4. Mechanical Life | Min 500 cycles |
| 5. Mating Pin | ∅0.40 To ∅0.66mm Or 0.50SQ |
| 6. Forces | Polished Steel Gauge ∅0.47mm |
| 7. Insertion | 200g Max/Pin Withdrawal:60g/pin |
| 8. Operation Temperature | -40℃ to +105℃ |
| 9.Sleeve | Brass CuZn36Pb3(C36000) Sn over Ni |
| 10. Contact Clip(4 Finger) | BeCu(C17200) Au Sn over Ni |
| 11. Insulator Material | PPS+30%GF(UL94V-0) |
| Product Name: Round female connector | ||||||||
| product features: high contact reliability, vibration resistance, small contact impedance | ||||||||
| product material: insulation part PPS, PA46 or PA6T plastic insulation part of the fire rating: UL94V-0 contact part: Brass | ||||||||
| scope of application: PCB computer communication cable LED integrated circuit IC power car monitor |

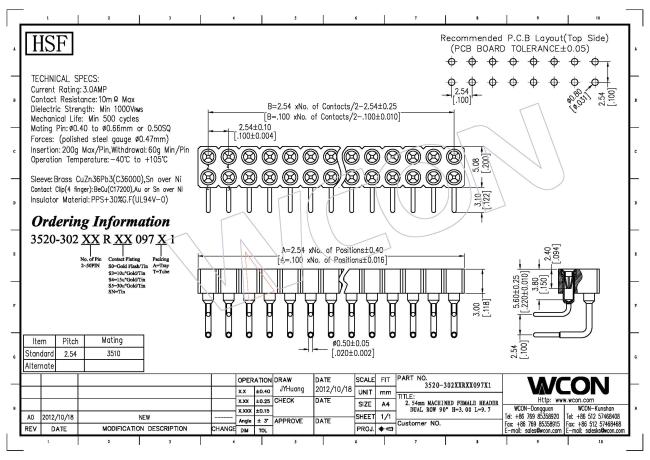

Drawing:3520-302XXRXX097X1.pdf
