WCON 2.54mm IDC Socket 26P Spring Type W/T Bump Sel.1U" Au / Sn ROHS Grey
Price:
negotiation
MOQ:
1000pcs
Delivery Time:
15~25 Working Days
Brand:
WCON
Product Description

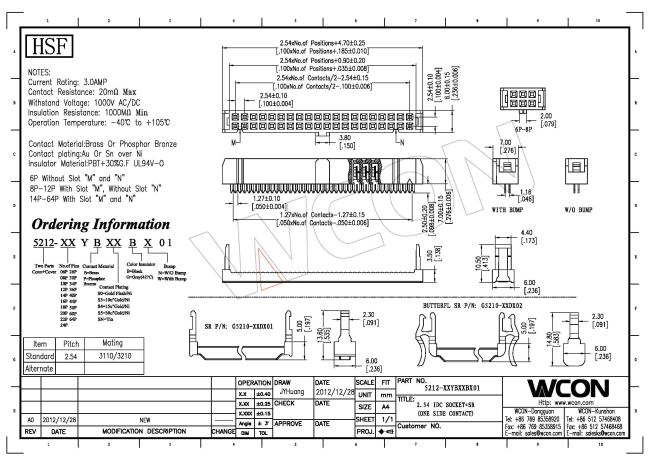

Grey 2.54 IDC Socket 26P Spring Type W/T Bump Sel.1U" Au/Sn ROHS.
| Product features: high voltage and high temperature resistant mechanical properties for the ambient temperature | ||||||||
| Product material: material terminal material: Bronze electronic plating: gold plated or tinned insulation material: Polyester UL94V-0 plastic PBT | ||||||||
| Application scope: cable PCB board VGA/SVGA card or BIOS chip |
| Current Rating | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 1000V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | phosphor Bronze |
| Contact Plating | Au over Ni |
| Insulator Material | PBT+30%GF UL94V-0 |
| 6P Without Slot M and N | |
| 8-12P With Slot M Without Slot N | |
| 14-64P With Slot M and N | |
