Grey 10P 2.54 Ejector Header Latch Header IDC Type With Location Hole PBT ROHS Approved
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
WCON
Product Description

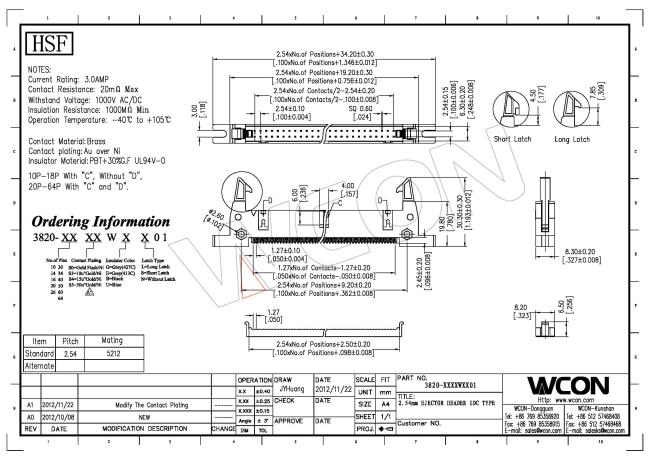

Grey 10P 2.54 Ejector Header Latch Header IDC Type With Location Hole PBT ROHS Approved
| Current Rating | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 1000V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | Brass |
| Contact Plating | Au over Ni |
| Insulator Material | PBT +30％GF( UL94V-0 ) 10-16Pin Without "A" |
| Item name: Ejector Header | ||||||||
| Product material: PA9T/LCP/PBT plating surface treatment: gold or tin plating | ||||||||
| Application scope: it is mainly used in communication and electronic equipment and data by welding on the PCB board, connecting the corresponding specifications of IDC cable and other circuit designers need to be welded on a PCB board, connecting the corresponding specifications of IDC cable and other circuit designers need |
10P 2.54 Ejector Header IDC Type With Location Hole PBT Grey ROHS.
