PBT Gold Flash Barrier Terminal Block 26P H=28.0 W=17.5 Without Lock 7.627.8mm

Name: PBT Gold Flash Barrier Terminal Block 2*6P H=28.0 W=17.5 Without Lock 7.62*7.8mm
Brand: WCON ELECTRONICS ( GUANGDONG) CO., LTD

Price Negotiable

Price: negotiation

MOQ: 1000PCS

Delivery Time: Negotiable

Brand: WCON

Product Description

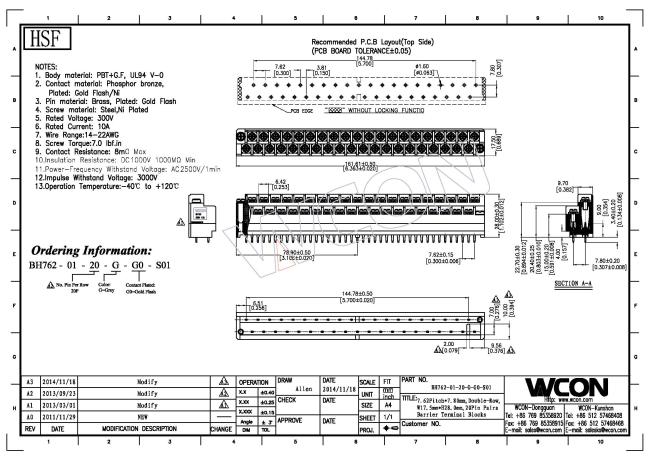

PBT Gold Flash Barrier Terminal Block 2*6P H=28.0 W=17.5 Without Lock 7.62*7.8mm

Body material	PBT+G.F UL94 V-0
Contact Material	phosphor bronze
plated	Gold flash/Ni
pin material	Brass, plated: gold flash
Screw material	steel plated:Ni
Rated voltage	300V
Rated current:	10A
Wire range	14-22AWG
Contact resistance	8MΩ max
insulation resistance	DC1000V 1000MΩ Min
power-frequency withstand voltage	AC2500V/Min
impulse withstand voltage	3000V
Operation temperaure	﹣40℃ to +120℃

Item name: 7.62*8.0mm Barrier Terminal Block
Product features: high switching frequency, high insulation, long service life, high reliability
Material: copper alloy, copper alloy, nickel or nickel alloy
Application: mainly used in lighting, communications, security and other industries. The application of industry pluggable terminal blocks is the most main pan, such as frequency, riot, control panel, access controller, sensor, PLC, instrumentation, power, servo drive, the common requirements of these applications of pluggable terminal blocks are: plug to stable contact resistance to be small, to be able to meet the life and fatigue degree, so higher requirements for metal shrapnel materials. This requires the designer to have some experience in structure and material selection. For the fence type terminals are mainly used in: power supply, relay (especially double terminal), inverter, elevator industry (less), air conditioning.
