PA66 Green Pluggable Pcb Terminal Block Without Ear 10P 3.50 Female WCON ROHS
Price:
negotiation
MOQ:
1000pcs
Delivery Time:
15~25Day
Brand:
WCON
Product Description
PA66 Green Pluggable Pcb Terminal Block Without Ear 10P 3.50 Female WCON ROHS
| Current Rating | 8A |
| Voltage Rating | 300v |
| Contact Resistance | 8milliohm Max |
| Withstand Voltage | AC2000V |
| Insulation Resistance | 1000Megohm Min |
| Screw Torque | 2 lbf.in |
| Wire range | 16-30AWG |
| Operation Temperature | ﹣40℃ to +105℃ |
| Housing Material | PA66 UL94V-0 |
| Cover Material | PA66 UL94V-0 |
| Screw | Steel |
| Pin Block | Brass |
| Contact | Phosphor Bronze |
| Side Screw | Steel |
| Item name: 3.50 Pluggable Terminal Block | ||||||||
| Product features: high switching frequency, high insulation, long service life, high reliability | ||||||||
| Material: copper alloy, copper alloy, nickel or nickel alloy | ||||||||
| Application: mainly used in lighting, communications, security and other industries. The application of industry pluggable terminal blocks is the most main pan, such as frequency, riot, control panel, access controller, sensor, PLC, instrumentation, power, servo drive, the common requirements of these applications of pluggable terminal blocks are: plug to stable contact resistance to be small, to be able to meet the life and fatigue degree, so higher requirements for metal shrapnel materials. This requires the designer to have some experience in structure and material selection. For the fence type terminals are mainly used in: power supply, relay (especially double terminal), inverter, elevator industry (less), air conditioning. |
Without Ear 10P 3.50 Pluggable Terminal Block Female PA66 Green WCON ROHS.

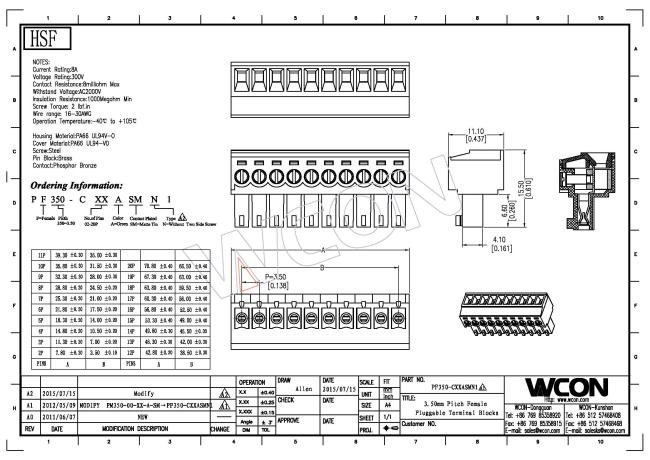

Drawing:PF350-CXXASMN1.pdf
