Straight male A Type Power and signal hybrid board to board connectors Sn plated With forks ROHS

Name: Straight male A Type Power and signal hybrid board to board connectors Sn plated With forks ROHS
Brand: WCON ELECTRONICS ( GUANGDONG) CO., LTD

Price Negotiable

Price: negotiation

MOQ: 1000pcs

Delivery Time: 15~25Day

Brand: WCON

Product Description

Power+Signal PSP A Type Straight Male(3+16+3)PA9T BK A=3.43mm Sel.30U"Au/Matte Sn,40/Tray,NW:11.964g.

Insulator Material	PA9T+G.F,UL94V-0
Terminal Material	Copper Alloy
Terminal Plating	Au/Sn Plated Over Nickel
Rated Voltage	50V
Rated Current	Power 30A Signl 2.5A
Contact Resistance	Power 0.7MΩ Max Signal 2010mΩ Max
Insulation Resistance	DC500V PPWER 10000MΩ Min Signal 500MΩ Min
Insulation Withstand Voltage	Power 2500VAC/1min Signal 1000VAC/1min
Durability	200 cycling

Power+Signal PSP A Type straight angel Male
1.PSP mixed power and signal distribution connectors designed to support high power applications, it also has the power and signal contacts, capable of simultaneous power allocation and power control in a connector

2.PSP mixed power and signal distribution connector can provide 1-20 power contacts and 0-148 signal contacts. The rated current capacity of each power supply contact is 48A;

3. power supply contacts and signal contacts can provide two levels of sequential matching, which can support up to three levels of power supply and signal sequence matching.

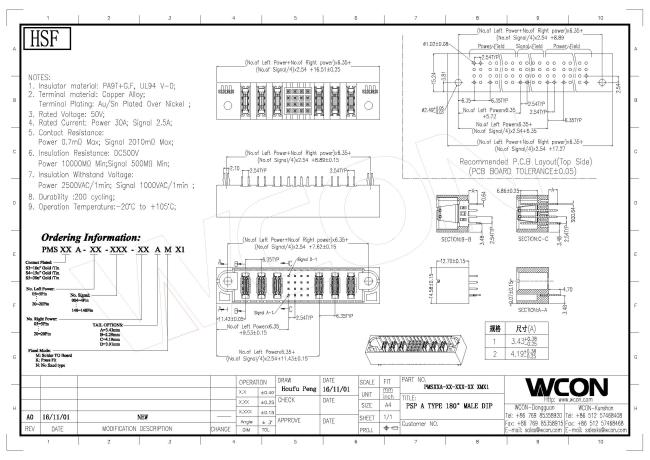

Drawing:PMSXX-A-XX-XXX-XXAMX1.pdf
