China Right Angle Dual Row Header Connector , Black 2.54 Mm Female Header for sale

Right Angle Dual Row Header Connector , Black 2.54 Mm Female Header

Price Negotiable
Price: negotiaiton
MOQ: 1000PCS
Delivery Time: 15~25Day
Brand: WCON
Product Description

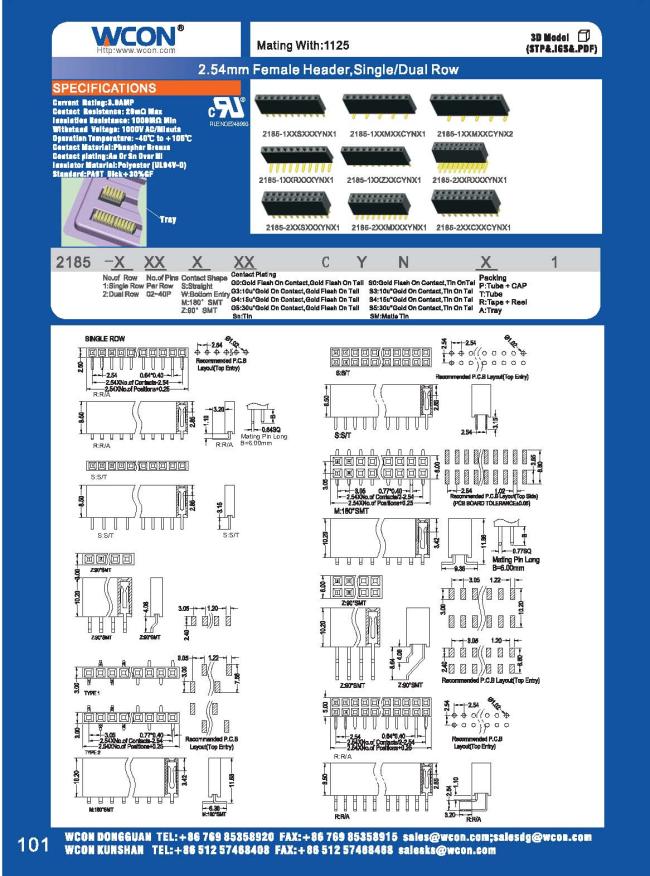

90 degrees SMT H=8.5mm Female Header Connector 2.54mm PA9T Back



PA9T/PBT/ brass or phosphor bronze 90 Degrees SMT H=8.5mm Female Header Connector PA9T Back 2.54 Mm Female Header



Item name: female connector:

Item name: female connector
product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance
product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0
scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.










  1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30ï¼…GF UL94V-0
