Monaliza Q Switched ND YAG Laser Machine For Skin Care 1064 Nm 532 Nm Wavelength

Monaliza q switch nd yag laser skin care pigmentation removal nd:yag laser machine price

Treatment Principle

Treatment principle of Monaliza-2 Q-Switched Nd: YAG Laser Therapy Systems is based on laser selective photothermy and blasting mechanism of Q-switched laser. Energy form particular wavelength with accurate dose will act on certain targeted color radicals: ink, carbon particles from derma and epidermis, exogenous pigment particles and endogenous melanophore from derma and epidermis. When suddenly being heated, Pigment particles immediately blast into smaller pieces, which will be swallowed by macrophage phagocytosis and enters into lymph circulation system and finally be discharged out of body.

Side Effects and Taboos

1. For the darker skin patient, it is not suggestable to randomly adopt high energy because the superficial skin layer pigment’s absorption of laser makesit relatively higher riskif the skin is lightly damaged.

2. The skin may appear red and swollen, skin infiltration of blood and inflammatory reactions after the laser operation. Unguent for scald and scar avoidance shall be used after treatment.

3. For parts of pigments which contains metal ion (such as iron ion), some of dark chemicals (like ferrous oxide), which are difficult to be absorbed after laser treatment, may darker treatment areas. This is caused by different structures of pigments, which has no relations to the device quality.

4. Keep the treatment area dry and clean and protect it from infection.

Brief Introduction

Major components of Q-Switched Nd:YAGLaser Therapy Systems:

——Laser module

——Articulated arm

——Laser power supply

——Cooling system

——Display and control systems

Laser module

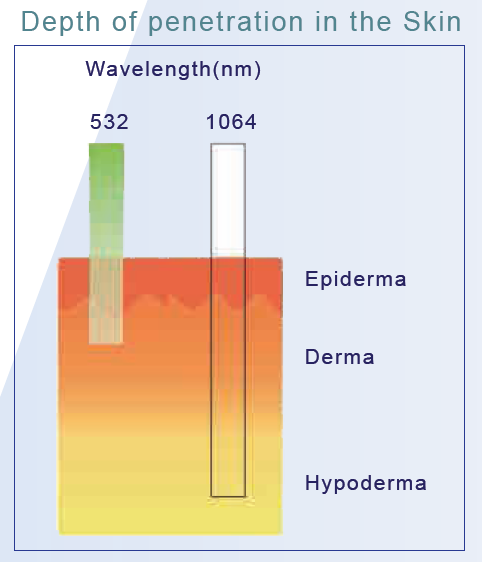

The device adopts a Q-switched Nd:YAGlaser module with bi-wavelength of 1064nm&532nm. the wavelength could be switched by electrical control. For 1064nm,the maximum pulse energy is over 600mJ; For 532nm,the maximum pulse energy is over 300mJ.

Articulated Arm

The device adopts seven-joint articulated arm, which can be installed to the main console through quickly with locking screws. High reflectivity mirrors of 1064nm and 532nm are adopted in the articulated arm. The output efficiency of the articulated arm is above 80%. A handpiece with adjustable spot size can be installed at the end of the articulated arm. The treatment spots size can be adjusted from 2 to 10mm.

Laser Power Supply

Laser power is used to provide power for laser module to produce pulse laser. The system adopts integrated laser power and the laser power could be communicated with the systemcontrolling core,whichcan control the output voltages and relevant synchronization information and then control the laser moduleenergy output.
