Portable Laser Blood Vessel Removal Mahcine 980nm Medical Diode Laser

Price Negotiable
Price: Negotiable
MOQ: 1set
Delivery Time: 1-2 weeks
Brand: Monaliza
Product Description

Sincoheren factory Distributors wanted 980nm medical diode laser vascular removal spider vein removal machine for sale



Technological Theory



The target substance of vascular disease treatment is oxyhemoglobin in red blood cell in blood vessel. Wavelength affects laser’s depth of penetration. Under 1200nm, the longer the wavelength, the deeper laser can penetrate. Thus, laser wavelength is usually longer in vascular disease treatment so as to give consideration to target tissues’ selective absorption and penetrability. Besides, laser penetrates the epidermis melanin barrier and reaches targeted blood vessels. Short wavelength laser light will be competitively absorbed by epidermis melanin, which will cause epidermis injury and form cicatrix. 980nm Diode 980nm Laser Therapy system takes advantage of 980nm wavelength laser, penetrating epidermis and reaching blood vessels. Based on selective photothermolysis theory, oxyhemoglobin absorbs laser energy and produces thermal energy and spreads to vascular endothelial cells through conduction mechanism. In consequence, blood vessel wall is damaged and facial vascular will be treated.

The major targeted chromophore in facial vascular treatment is oxyhemoglobin that existing in red blood cell in vessels. According to the curve of laser absorption by targeted substance (right picture), oxyhemoglobin shows a much higher absorption interval in 900nm-1000nm. Thus 980nm semi-conductor laser has the ideal treatment effects for facial vascular removal.



Clinical Indications



Ø Facial vascular

Ø Angiotelectasis



Contraindications



In clinical treatment, patients with following conditions are not allowed to take treatment unless the impacting factors are eliminated:

Ø Patient having history of photosensitive disease or taking photosensitizer in one year;

Ø Patient with cicatricial physics;

Ø Patient exposed to sun in a month;

Ø Patient in pregnancy or suckling period;

Ø Patient with high blood pressure and severe heart disease;

Ø Diabetes, AIDS, SLE or epileptic patients, or patients have taken treatments with glucocorticoid;

Ø Patient with herpes simplex medical history;

Ø Patient having opened wound in treatment area.



 Features of our spider vein removal machine?



1. No bleeding, non-invasive,Newest laser technology for vascular removal and spider veins remvoval,

compared high frequency RBS therapy ;

2. 1-30W adjustable energy to satisfy different requirements.
3. less side effects: no burning, redness or scar.
4. Fast results : Only one or two treatments are requied.
5. Accurate treatment: energy is well focused onto 0.2-0.5mm spot .
6. Portable and smart design is covenient to do treatment.



Specification



Laser Type Diode laser
Wavelength 980nm
Laser mode Pulser
Power 16W Max or 10W Max
Energy 0.1-11.4J or 0.1-6.5J
Pulse Width 10-650ms
Pulse Frequency 1-10HZ
Spot Size 0.2mm
Beam Delivery Fiber of 200um, SMA 905 connector

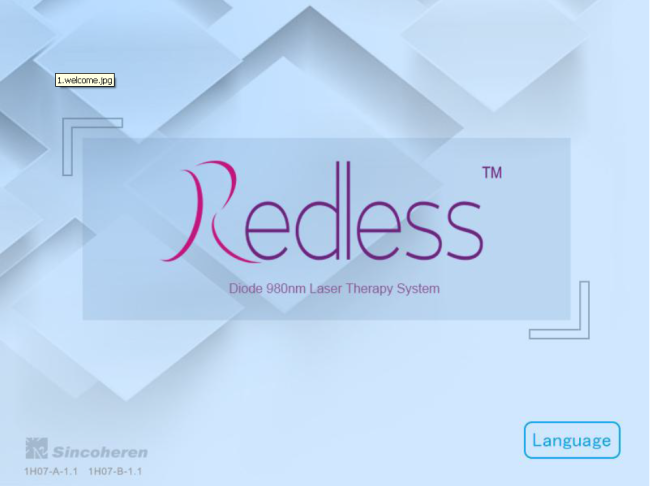

LCD Screen 8 inch
Electrical 100-240VAC, 50-60HZ, 200VA
Dimensions (L x W x H) 325mm x 470mm x 230mm
Net weight 8kg
