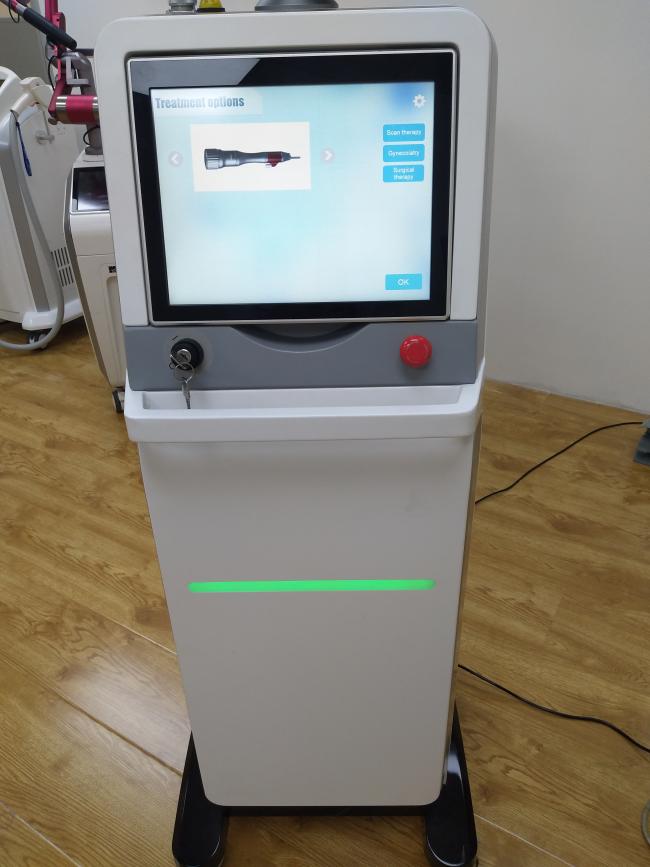

Facial Co2 Fractional Laser Machine For Remove Surgical Scars Actinic Keratoses Acne
facial Co2 Fractional Laser Machine for Remove Surgical Scars Actinic Keratoses Acne co2 surgical laser
Brief Introduction
Fractional resurfacing is a new modality for laser treatment that creates numerous microscopic thermal injury zones with controlled width, depth, and density that are surrounded by a reservoir of spared epidermal and dermal tissue, allowing for rapid repair of laser induced thermal injury. This unique modality, if implemented with proper laser delivery systems, enables high energy treatments while minimizing risks.
Working Mode
Continuos: Power 1~30W step adjustable each 1 W
Pulse: Power 1~30W step adjustable each 1
Interval time: 1~999ms
Ultra pulse: Power 1~30W step adjustable each 1
Modulated frequency of 1000 Hz
Pulse Duration: 90-1000μs
Scanning mode
Scan mode: Ellipse, Rectangular.
Scanning Range: 15*15mm
Repeat Delay: 0.1s---- 5.0s.
Micro Pulse Energy: 5mJ---50mJ.
Treatment Level: 0.30%-----25.0%.
Passes: 1-----10 times.
Estimated Power: 24mJ--1000J.
Ellipes estimated power: 31mJ----1000J
Rectangular estimated power: 24mJ----981J
Treatment area: 0.1*0.1mm, ----- 20*20mm.
Handpiece Velocity: 0.1-----9cm2/s
Scanning Depth: <1.8mm
Advantage&DIfferences:
Skin resurfacing (to improve texture)
Pigmented lesions: age spots / brown spots / sun spots
Wrinkles around the eyes
Acne scars
Surgical scars
Melasma (mask of pregnancy)
Actinic Keratoses
Features
1. Applicable to all skin types
2. CW, Pulse and Ultrapulse operation modes
3. Patient-personalized settings
4. The Fractional CO2 laser system safely and effectively treats all skin types (Skin Types I-VI)
5. Multiple Treatment Modes Optional
| Wavelength | 10.6μm |
| Power | 30W |
| Indication beam | Diode laser (532nm,5mW) |
| Micro Pulse Energy | 5MJ ~ 100 MJ |
| Transmission System |
7-Ariculation Joint Spring-Balanced Light Guiding Arm |
| Scanning Mode |
Scanning area: min 0.1 ×0.1mm max 20 ×20mm Scanninh graphic: Rectangular, Ellipse, Round, Triangle Handle piece Velocity: 0.1~9cm²/s Scan depth:<2mm Estimated power:24mJ~1000J |
| Continuous | 1~30W,step adjustable per 1W |
| Pulse Interval time | 1~999ms, step adjustable per 1 ms |
| Pulse duration | 90~1000μs |
| Modulation Frequency | 1~999Hz, step adjustable per 1 Hz |
| Cooling System | Built-in water cooling |
| Electrical requirement | 230VAC 50Hz 1000W |
| Dimension(W×D×H) | 430mm×350mm×1050mm |
| Weight |
35kg |
