Laser Hair Removal Machine Diode 1200w 808nm Diode Laser Hair Removal Machine

Main Features

1) ALEX 755nm WAVELENGTH

The Alexandrite wavelength offers more powerful energy absorption by the melanin chromophore, making it ideal for the widest range of hair types and color- especially light- colored and thin hair. With more superficial penetration, the 755nm wavelength targets the Bulge of the hair follicle and is especially effective for superficially embedded hair in areas such as the eyebrows and upper lip.

2)SPEED 808nm WAVELENGTH

The classic wavelength in laser hair removal, the 808nm wavelength, offers deep penetration of the hair follicle with high average power, a high repetition rate and a large 2cm spot size for fast treatment. The 808nm has a moderate melanin absorption level making it safe for darker skin types. Its deep penetration capabilities target the Bulge and Bulb of the hair follicle while moderate tissue depth penetration makes it ideal for treating the arms, legs, cheeks and beard.

3) YAG 1064nm WAVELENGTH

The YAG 1064 wavelength is characterized by lower melanin absorption, making it a focused solution for darker skin types.At the same time, the 1064nm offers the deepest pene- tration of the hair follicle, allowing it to target the Bulb and Papilla, as well as treat deeply embedded hair in areas such as the scalp, arm pits and pubic areas. With higher water ab- sorption generating a higher temperature, the incorporation of the 1064nm wavelength in- creases the thermal profile of the overall laser treatment for most effective hair removal

Wavelength	808nm,755nm,1064nm,3 in 1
Laser power	800W / 1000W/ 1200W
Laser bar power	100W×8/ 100W×10 /100W×12
Spot size	12*20mm²/12*16mm²
Energy Density	1-60J/cm²
Pulse Width	5-200ms
Pulse frequency	1Hz-10Hz
Overall size	40cm×37cm×109cm
Net weight	50Kg

Advantage

Hand piece
- 755&810&1064 three different wavelength laser output, suitable for the treatment of all color hair and all skin color patients
- The color LCD screen of the handle displays the laser status and treatment parameters, a sense of science and technology, which is convenient for establishing customer treatment files;
- The handle adopts ergonomic design, feels comfortable and light, and reduces the burden on the operator
- SHR mode, 12*20mm large spot, maximum 1200W high power energy output, to ensure fast and permanent hair removal;
- Sapphire freezing point treatment, super continuous protection of the epidermis, no pain, high patient satisfaction
- Coherent imported laser bar from the United States, with a life span of 70 million points and a macro-channel heat dissipation structure. The water cooling is simple and convenient, so that the laser has a longer service life.
- Patent design laser path structure, reduce laser energy consumption, ensure sufficient energy output, and good treatment effect

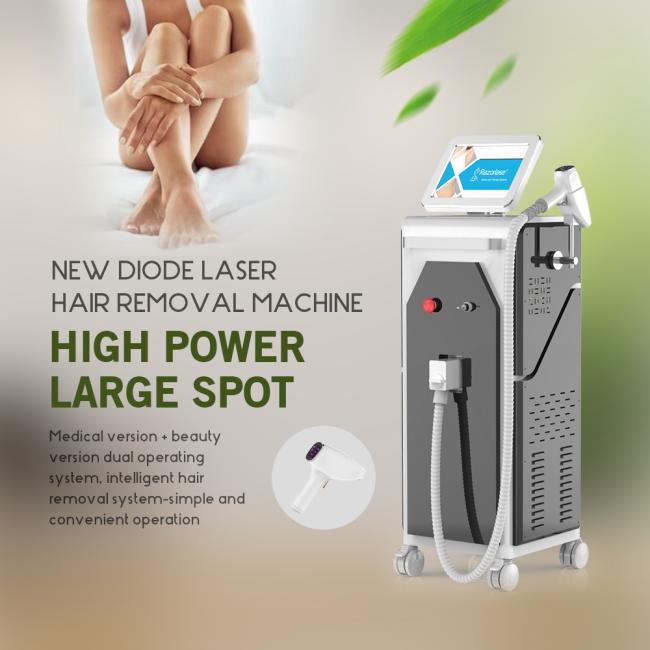

Machine body
- 12.1 inch touch screen, aluminum alloy metal panel, more fashionable
- Dual-axis flip screen design, multi-angle adjustment-suitable for different heights and different angles of operation
- Medical version + beauty version dual operating system, intelligent hair removal system-simple and convenient operationQuality determines service life
- Super strong six-core semiconductor & water-cooled module cooling, to ensure that the water temperature does not exceed 30 ℃;extending the service life of the whole machine and the bar.
- High-precision quick-plug filter-to ensure the quality of water circulation.
- Professional pulse constant current laser power supply-to ensure stable energy.
- German water pump, the water flow speed is not less than 4.2L/min;-to ensure the heat .dissipation of the laser bar.
- Condenser, high heat dissipation efficiency.

Detailed Images

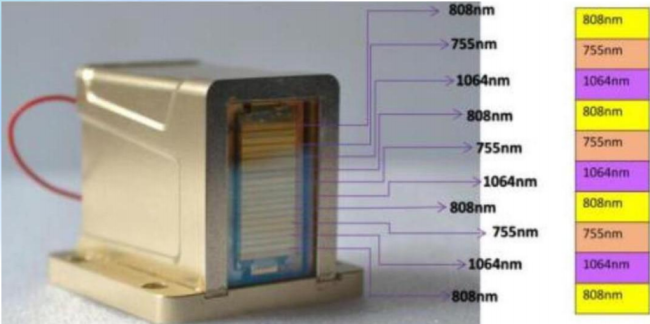

Main component

Name: laser bar
Brand: Jenoptik Diodo lap Gmbh
Original: Germany
Ensure the stability and sufficient energy of lasers:Golden tin packing,high temperature resistance,very stable performance.





Before and After
