Commercial Shell And Tube Condenser , Water Cooled Heat Exchanger For Cold Room

Condenser Water - Cooled Type Condenser

Tube Heat Exchanger

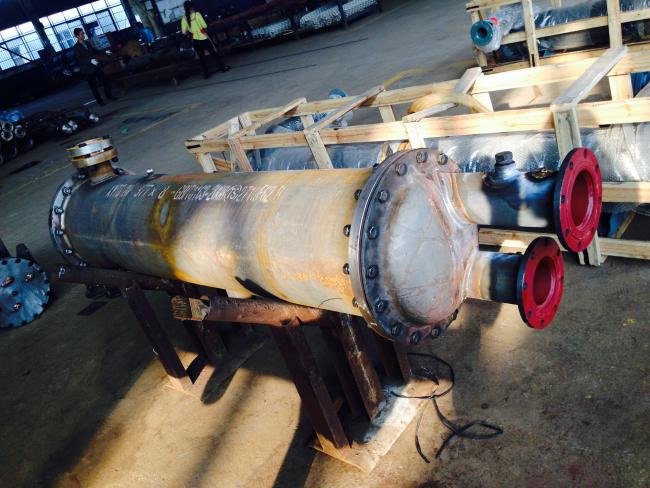

The water-cooled cooler consists of two parts:

the outer shell and the internal cooler body. The outer shell includes a cylinder, a water distribution cover

and a backwater cover.

It is equipped with inlet and outlet tubing and inlet and outlet pipes, and is equipped with oil discharge,

drainage, exhaust plug, zinc rod mounting hole and thermometer interface.

The heat medium of the water-cooled cooler is imported from the pipe by the pipe, and flows sequentially

through the baffle passage to the takeover outlet.

And the cooler medium is double-pipe flow, that is, the cooler medium from the inlet through the water

cover into the half of the cooler tube, and then from the back cover into the other half of the cooler tube

into the other side of the water cover and outlet pipe The Cold medium in the process of double flow

process, the absorption of heat generated by the heat transfer from the outlet, so that the working

medium to maintain the rated working temperature.

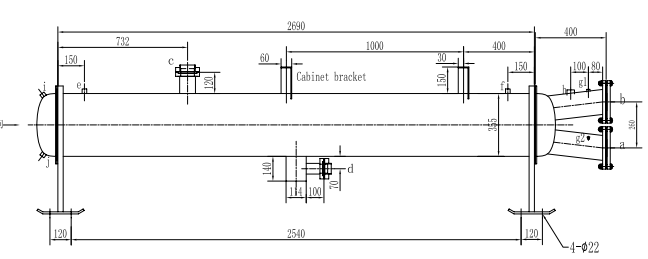

Details drawing and technical data are as below:

DRAWING

CONDENSER SERIES SINGLE CIRCUIT

CAPACITY: 110RT TO 200RT
