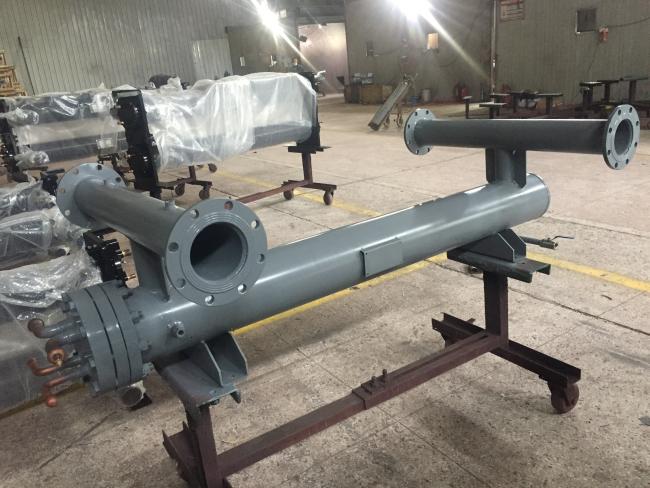

ABS Baffles 18KW Copper Tube Dry Heat Exchanger
18kw copper tube evaporator central air conditioning units ABS baffles
U Shaped Tube Dry Type Evaporator (Single Circuit)
(Capacity) 18KW TO 270KW
| Models | QXU18S5 | QXU47S6 | QXU65S8 | QXU135S8 | QXU185S10 | QXU270S10 | ||
|
Rated data Refrigerant R22 ti=12°C te=2°C tu=7°C Dts=5°C |
Qn | KW | 18.6 | 47 | 65 | 135 | 185 | 270 |
|
Kcal/h (×103 ) |
16 | 40.4 | 56.7 | 116 | 159 | 232 | ||
| Wn | m3 /h | 4 | 8 | 11.4 | 23.2 | 31.8 | 46.4 | |
| Wm | m3 /h | 6.3 | 11.4 | 14.5 | 28 | 41 | 65 | |
| Dpn | bar | 0.16 | 0.41 | 0.39 | 0.44 | 0.36 | 0.42 | |
|

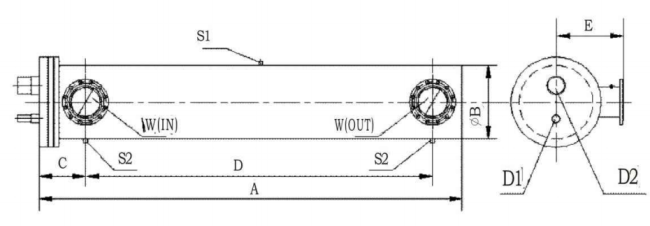

Size(mm) |
A | 887 | 1407 | 1431 | 2115 | 2320 | 2654 | |
| B | 140 | 168 | 219 | 219 | 273 | 273 | ||
| C | 97 | 107 | 161 | 180 | 200 | 234 | ||
| D | 690 | 1190 | 1180 | 1830 | 2000 | 2280 | ||
| E | 180 | 200 | 200 | 240 | 300 | 300 | ||
|
Inlet/Outlet Size |
W(DN) | 40 | 50 | 65 | 80 | 100 | 100 | |
| D1(mm) | 22 | 22 | 22 | 35 | 35 | 35 | ||
| D2(mm) | 35 | 35 | 54 | 54 | 67 | 80 | ||
| Weight | kg | 49 | 78 | 93 | 155 | 232 | 289 | |
|
Notes: Qn Rated Refrigerating Capacity Wn Cooling Water Flow Wm Maximum Cooling Water Flow Dpn Circulating Cooling Water Pressure Drop Dts Superheat Temperature |
||||||||
U Shaped Tube Dry Type Evaporator (Double Circuit)
(Capacity) 35KW TO 310KW
| Models | QXU35D6 | QXU65D8 | QXU95D8 | QXU185D10 | QXU270D10 | QXU310D10 | ||
|
Rated data Refrigerant R22 ti=12°C te=2°C tu=7°C Dts=5°C |
Qn | KW | 35 | 65 | 95 | 185 | 270 | 310 |
|
Kcal/h (×103 ) |
30.2 | 56.7 | 81.7 | 159 | 232 | 267 | ||
| Wn | m3 /h | 6 | 11.4 | 16.4 | 31.8 | 46.4 | 53.3 | |
| Wm | m3 /h | 10 | 14.5 | 21 | 41 | 65 | 68 | |
| Dpn | bar | 0.27 | 0.39 | 0.46 | 0.36 | 0.42 | 0.43 | |
|

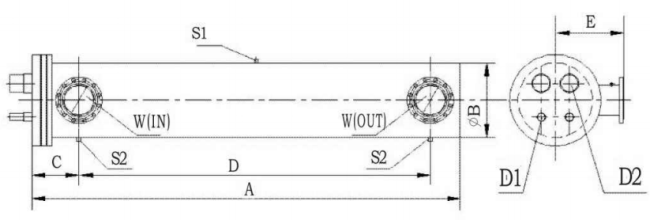

Size(mm) |
A | 1275 | 1431 | 1781 | 2320 | 2654 | 2654 | |
| B | 168 | 168 | 219 | 219 | 273 | 273 | ||
| C | 107 | 161 | 200 | 200 | 234 | 234 | ||
| D | 1040 | 1180 | 1530 | 2000 | 2280 | 2280 | ||
| E | 200 | 240 | 240 | 300 | 300 | 300 | ||
|
Inlet/Outlet Size |
W(DN) | 50 | 50 | 65 | 89 | 114 | 114 | |
| D1(mm) | 16 | 22 | 22 | 22 | 35 | 35 | ||
| D2(mm) | 22 | 35 | 35 | 42 | 54 | 54 | ||
| Weight | kg | 72 | 93 | 136 | 232 | 279 | 296 | |
|
Notes: Qn Rated Refrigerating Capacity Wn Cooling Water Flow Wm Maximum Cooling Water Flow Dpn Circulating Cooling Water Pressure Drop Dts Superheat Temperature |
||||||||
When the horizontal shell-tube evaporator works, a considerable amount of liquid refrigerant should be installed in the shell. Usually, the height of the static liquid level is 70% ~ 80% of the diameter of the shell, so it is also called the full-liquid evaporator. At this time, there will be 1 ~ 3 rows of pipes exposed to the liquid level.During boiling, these tubes are moistened by the liquid brought up and thus act as heat transfer agents.If the liquid level is kept low, the evaporator tube cannot give full play to its heat transfer function.On the contrary, if the liquid level remains too high, there is a danger of bringing the liquid into the compressor.
