4K HDMI KVM Video Fiber Converter OM4 Multimode LC Fiber 300 meters Transceiver

Product Description:

LNK-109KVM Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender is a set of Transmitter and Receiver unit that allows you to extend HDMI 2.0 and USB HID signals up to the distance of 300 meters (984 feet) by using LC OM4 MM Fiber Optic Cabling. It can deliver the highest resolution of up to 4K 60Hz UHD picture quality with 4:4:4 chroma sampling.

The Transmitter unit is integrated with a distribution chip that can transform one HDMI input to two outputs. One output uses Wavelength-division multiplexing (WDM) technology to convert multiple high-speed differential signals to optical fiber output via the photoelectric conversion engine. Afterwards, it will carry the signal output to a Receiver unit to restore to HDMI output.

Features:

This fiber optic HDMI signal extender can transmit 4K HDMI2.0 video signals up to 300 meters over OM4 MMF with no quality loss. It can transport uncompressed HDMI 2.0 video signals up to 4K@60Hz 4:4:4.

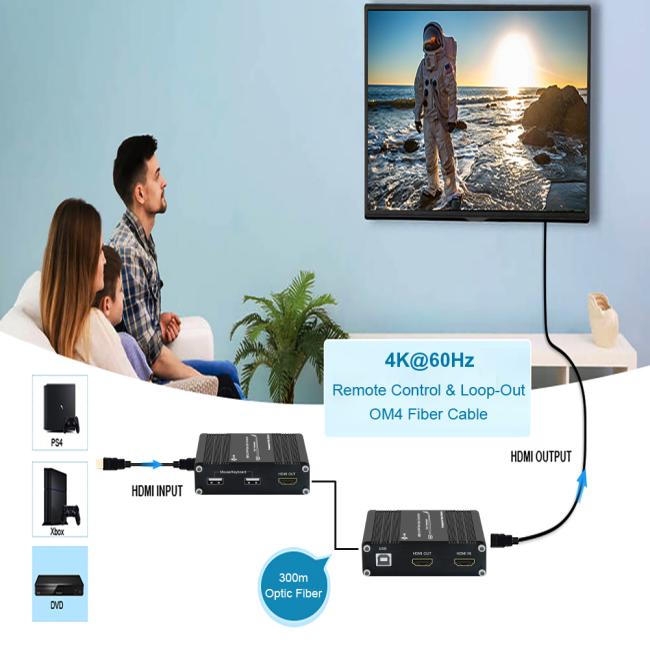

It also supports keyboard and mouse signal transmission. The transmitter supports a local loop output so that users can use HDMI, USB input (type B-female) for keyboard/mouse, fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female) in the local module; For the remote module, it includes HDMI output for remote display, 2 USB outputs (keyboard/mouse), fiber optic connector (LC-female) and 5 VDC power connector (DC-jack-female).

Technical Parameters:

• Standards: HDMI 2.0 and HDCP 2.2
• Maximum pixel clock: 600MHz
• Data speed: 18Gbps(6 Gbps/CH)
• Resolution range: 4K@60Hz/4K@30Hz/1080p/720p
• Connector: Female HDMI type A
• Impedance: 100Ω

• PC: MINI-USB
• Keyboard And Mouse: USB-A

• Interface: LC connector
• Fiber type: OM4 Multimode
• Wavelength: 850nm
• Interface bandwidth: 18Gbps
• Transmission distance: 300M

• Power supply: The power adapter: DC 5V
• Power dissipation: TX:＜1.5W; RX:＜1W
• Temperature: Operating: 0℃ ~ +55℃
• Humidity: Operating: 5% ~ 90%
• Dimension (LxWxH): 93 x 70 x 28 (mm)
• Gross weight: 0.25KG
• The warranty: 1-year free warranty

Applications:

Support and Services:

We offer a range of support and services for our HDMI Over Fiber Optic Extender product, including:

• 24/7 technical support
• Live chat and telephone support
• Free software updates
• Extended warranty options
• On-site installations
• Troubleshooting and repair services

For more information about our technical support and service options, please contact us.

Packing and Shipping:

HDMI Over Fiber Optic Extender is securely packaged to ensure safety during the delivery process. The product is shipped in a cardboard box and includes all necessary accessories. Additional packing materials are used to protect the product from any damage during transit. The package also includes a return address and a tracking number to ensure safe delivery.

Ordering Information:
