Overview
The LNK-H4K101 HDMI Fiber Extender transmits 4K UHD and 3D video over a single optical fiber,
delivering lossless image quality up to 60km. With HDMI 1.4 compliance, EDID management, and built-in
ESD protection, it ensures smooth, stable, and secure transmission. Ideal for professional AV, medical
imaging, and security applications requiring long-distance ultra-clear video.
Features
Extends HDMI and 3D video signals up to 60km over single fiber
Supports resolutions up to 3840×2160@30Hz UHD
Compatible with HDMI 1.4 and HDCP 1.2 standards
EDID memory ensures accurate display recognition
Built-in auto adjustment for smooth and clear video output
Integrated ESD protection for system reliability
Easy plug-and-play setup, no driver needed
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI 1.4; HDCP 1.2 |
| Maximum pixel clock | 340MHz | |
| Maximum data rate | 10.2Gbps | |
| Resolution range | Up to 3840*2160@30Hz | |
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Multi-mode / single-mode (optional) | |
| Wavelength |
Multi-mode 850nm / Single-mode 1310nm(optional) |
|
| Interface bandwidth | 10Gbps | |
| Transmission distance |
OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km |
|
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | Max 4W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 104*89*28mm | |
Ordering Information
| Item | Description |
| LNK-H4K101 | 4K (3840*2160/30P) HDMI Fiber Extender, SFP Port(Excl. SFP), support 10G SFP+ module, including 1 transmitter & 1 receiver, used by pairs P.S: HDCP/EDID/CEC Function is not available when using BIDI SFP+ module |
Panel

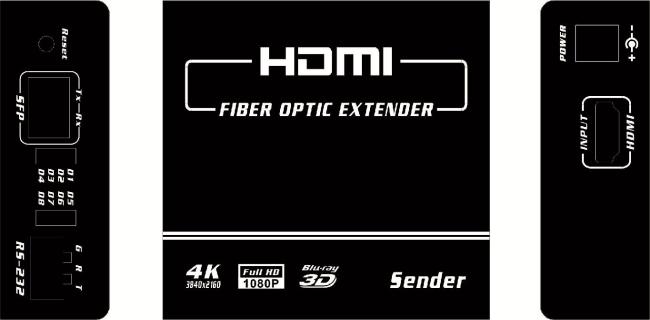

Sender
| Port name | Description |
| HDMI IN | HDMI signal input |
|
RESET (EDID BOTTON) |
An EDID memory built into the Tx module can learn and store the display EDID info. |
| POWER | Power adapter socket |
| SFP | SFP model --- LC connector |
| LED indicator | Description |
| D1 | System power indicator |
| D2 | When press EDID BOTTON, The led will flash 3 seconds |
| D3 |
Optical fiber signal connection indicator ON:LOS OFF:OK |
| D4 | BLINK,Source plug in |

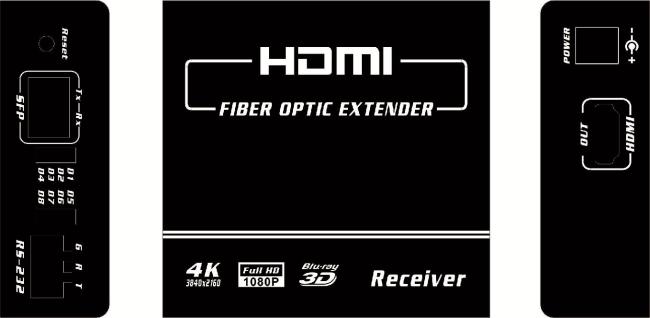

Receiver:
| Port name | Description |
| HDMI OUT | HDMI signal output |
| RESET | System reset botton |
| POWER | Power adapter socket |
| SFP | SFP model --- LC connector |
| LED indicator | Description |
| D1 | System power indicator |
| D2 | RECEIVER: Reserve |
| D3 |
Optical fiber signal connection indicator ON:LOS OFF:OK |
| D4 | BLINK,SINK plug in |
