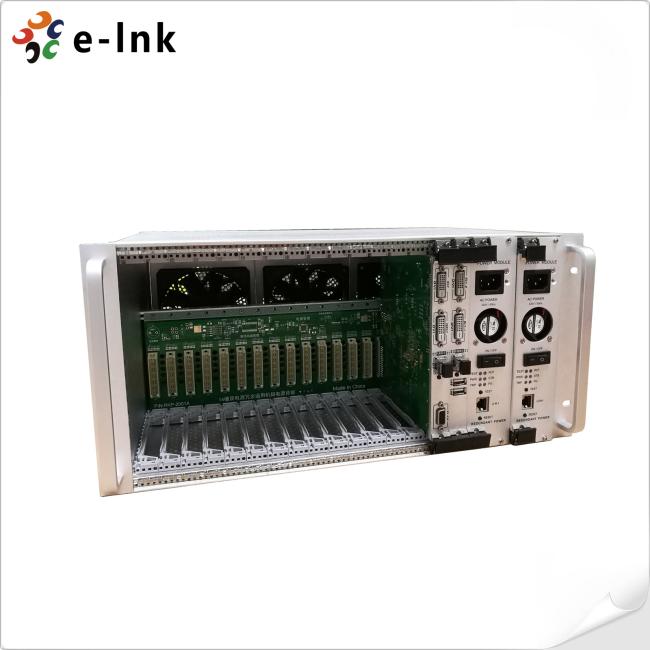

5U Rack Mount 4K DVI KVM Fiber Optic Extender
5U Rack Mount 4K DVI KVM Fiber Optic Extender
DVI Fiber Extender Advantages
► Support 5U rack
► Real Time Transmission
►Supports DVI 1.0 and HDMI v1.4
►Supports resolutions up to 3840*2160/30p, 4096x2160/30p, 3840*2160/60P(YCbCr 420), 4096*2160/60P(YCbCr 420)
►Supports 3840*2160/30p resolution with color depth up to 24 bits/pixel
►Supports bit-rates up to 3.4 Gbps/color,10.2 Gbps total
► HDCP 1.4 compliant
►Support 3D TV pass-through
►CEC are NOT supported!
►Support EDID pass-through
HDMI Fiber Extender Technical Indexes
| Performance | |
| Compliance | DVI1.0 / HDMI v1.4 |
| Maximum Pixel Clock Frequency | 340 MHz |
| Maximum Video Bit Rate | 3.40 Gbps |
| Supported Color Depth | 24-bit |
| Supported Resolutions | 1920x1080/60p,3840x2160/30p, 4096x2160/30p, |
| Digital Audio Support | 7.1 channel LPCM, 192 kHz, 24-bit audio capability |
| Connections | |
| DVI Input / DVI Output | 1x DVI 24+1 Female connector |
| Optical | 1x SFP+ port |
| Cable | |
| Fiber Cable Type / Max. Length | 50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters) |
| Extended function | |
| KM Support | USB Keyboard x 1 / USB Mouse x1 |
| CEC Support | CEC are NOT supported! |
| DDC Support | |
| EDID Pass-through Support | only 300 meters |
| HDCP Pass-through Support | only 300 meters |
| Mechanical | |
| Construction | High-impact Alufer enclosure |
| Dimensions (L x W x H) | 89mm x 104 mm x 28.3 mm |
| Net Weight | LNK-4KDVI-2240-S: 200 g LNK-4KDVI-2240-R: 200 g |
| Environmental | |
| Operating Temperature | -32° to +122° F. (0° to +50° C) |
| Storage Temperature | -40° to +185° F. (-40° to +85° C) |
| Operating Humidity | 5% to 80% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| Power Requirements | |
| External AC Power Adapter | Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A 5/2.5mm jack |
| Power Consumption | LNK-4KDVI-2240-S: 3 watts LNK-4KDVI-2240-R: 3 watts |
| Warranty | |
| Limited Warranty | 2 year warranty |
Industrial Ethernet Media Converter Overview
DVI (High-Definition Multimedia Interface) recently has become increasingly popular in the application of video and audio transmission system. In view of the extreme of electrical performances, however, the traditional copper wire cable imposes limits on signal transmission distance and signal quality. In reality, optical fiber is of low dispersion, which in turn has the strength of longer signal transmission distance and better signal transmission quality in comparison to the traditional copper wire cable. DVI extender uses 2 cores fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.
Ordering Information
| Item | Description |
| LNK-4KDVI-2240 | Card Type 4K DVI KVM Fiber Optic Extender with KVM, including 1 sender & 1 receiver, used by pairs |
| LNK-5U-DVI | 16-slot 5U Rack for 4K DVI KVM Fiber Extender |
