Model: LNK-HF100 Series
Overview
The LNK-HF100 HDMI Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable.
it supports high resolution up to 1080P, external audio transmission function.
The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI1.3; HDCP1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution range |
1920x1080P 1280 x 720 1024 x 768 1280 x 1024 1440 x 900 1680 x 1050 800 x 600 |
|
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| HDMI Cable Range | <5Meter (Resolution up to 1920*1080@60Hz) | |
| Audio | Interface | 3.5mm earphone seat |
| Signal type | Stereo | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode | |
| Wavelength | 850nm/1310nm | |
| Interface bandwidth | 1.25Gbps | |
| Transmission distance |
Transmission@1920*1080@60Hz OM3 Multi-mode fiber: <300M Single-mode fiber: 20km |
|
| Other | Power supply | The power adapter: DC 5V~12V |
| Power dissipation | MAX 6W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension (LxDxH) | 63*93*25mm | |
Features
- Transmits HDMI video signals and audio up to 20km over a single fiber optic cable;
- Support video resolution up to 1920*1080@60Hz ;
- Support external stereo audio forward transmission;
- Compliance with HDMI 1.3 and HDCP 1.2 standard;;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;

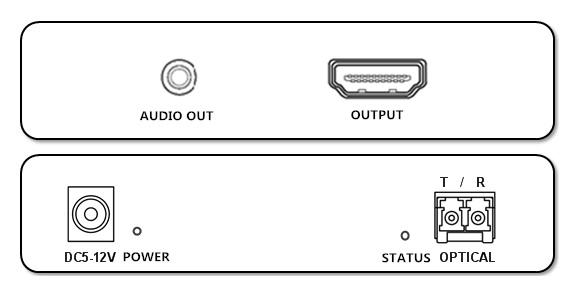

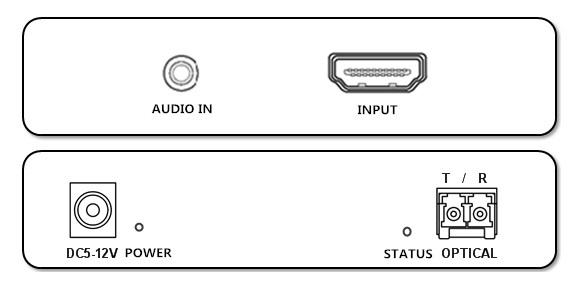

Panel
Transmitter
Receiver
| Port Name | Description |
| INPUT/OUTPUT | HDMI Signal Input/Output |
| AUDIO IN/OUT | External Stereo Audio Input/Output |
| DC5-12V | Power Adapter Socket |
| OPTICAL | SFP Module, LC Connector (T: Transmitter; R: Receiver) |
| LED Indicator | Description |
| STATUS | Video Signal Lock Indicator(ON: Lock; Off: Unlock) |
| POWER | Power Indicator(ON: Power Input; Off: No Power Input) |
Ordering Information
| Item | Description | |
| LNK-HF100 | HDMI Fiber Optic Extender: 1920*1080P@60Hz, Compliance with HDMI 1.3 & HDCP1.2 standard, Support external stereo audio forward transmission, LC(SFP), OM3 Multimode fiber, 300m, including 1 transmitter & 1 receiver, used by pairs | |
| LNK-HF100S | HDMI Fiber Optic Extender: 1920*1080P@60Hz, Compliance with HDMI 1.3 & HDCP1.2 standard, Support external stereo audio forward transmission, LC(SFP), single mode, single fiber, 20km, including 1 transmitter & 1 receiver, used by pairs |
