Mini HD-SDI Fiber Converter Extender RS422 Loop Out Single Mode Fiber FC Connector
Price:
US$79-99/pair
MOQ:
1
Delivery Time:
3-7 working days
Brand:
E-link
Product Description
Mini HD-SDI Fiber Converter Extender with RS422 and loop out
Single Mode Fiber FC Connector 20KM
Model: LNK-MHD-110 Series
Overview
LNK-MHD-110 & LNK-M3G-110 Series Mini 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video (audio embedded) & reversed RS422/485 data signal transmitted via fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal.
Features
- 1 channel 3G/HD-SDI video & data over optic fiber
- Each SDI channel includes 8-channel audio embedded
- SDI Input/FC Fiber Output/SDI Loop
- Automatic cable equalization to ensure signal integrity
- Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
- Directly compatible with HD-SDI camera systems
- Long transmission capability at least 10 km (6.2miles) , up to 80 km
- Terminal block power input for industrial application
- Supports hot swapping and hot plugging
- Full digital non-compression broadcast level transmission;
- super optic dynamic range and free of adjustment prior to use;
- surface coating technique;
- fiber optic WDM/CWDM/DWDM technique;
- 1000M optical fiber transmission, easy for update;
- industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;
Application
- Animal films recording;
- Live events broadcast over fiber
- High performance(error-free) surveillance networks in Army or security;
- Large video wall system
- Intelligent Traffic Monitoring System
- Security systems
- School networking
- Industrial monitoring (Electricity, Chemistry, Steel, Oil, Railway & etc)
- Military Monitoring (Warehouse, Border, Guards, etc)
- Stadium (For LIVE HD video, audio transmission)
Technical Indexes
| Fiber Optical interface | |
| Fiber interface | Simplex FC |
| Transmission distance | 550m-20Km |
| Wavelength | 1310nm/1550nm |
| Video | |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/out put voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| Video SDI standard | 270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) | |
| SMPTE424M 3Gb/s serial interface(3G-SDI) | |
| Data | |
| Physical interface | Industrial standard screw terminal |
| Data type | RS422/RS485 Reverse Direction |
| Frequency/Rate support |
Max. 115200bps for RS422 Max. 57600bps for RS485 |
| BER | <10ˉ9 |
| Electrical | |
| Power adaptor | DC 5~12V |
| Power consumption | <2W |
| LED Indicator | |
| S | SDI |
| P | Power Supply |
| D | Data |
| F | Fiber |
| Mechanical | |

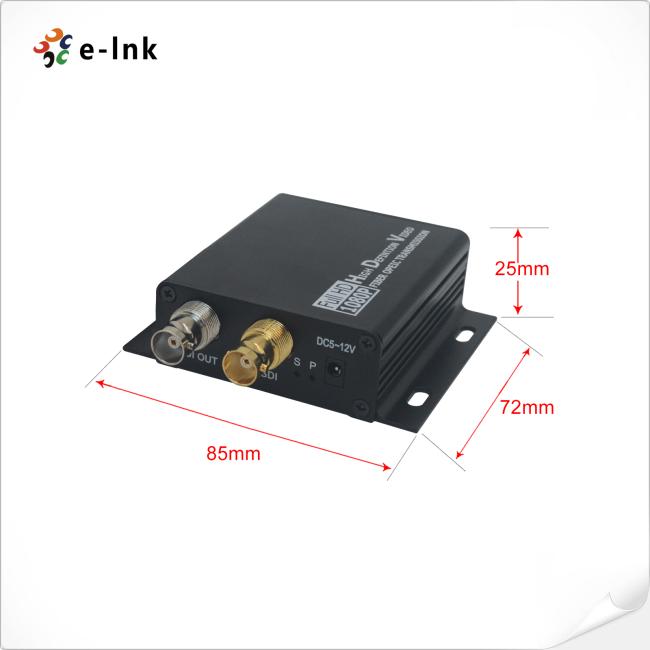

| Dimensions (LxWxH) | 72 x 85 x 25 mm |
| Weight | 0.28KG/pair |
| Casing | Aluminum Case |
| Mounting Options | Wall-mount |
| Environmental | |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
Ordering Information
| Item | Description | |
| LNK-MHD-110-20 | Mini HD-SDI to Fiber Converter with RS422 reverse data and loop out, SMF, FC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
