10/100/1000M Gigabit Poe Injector , Ethernet Power PoE Surge Protector IP 20

Price Negotiable

Price: US$14.9-US$17.9

MOQ: 1 pc

Delivery Time: 5-7 working days

Brand: E-link

Product Description

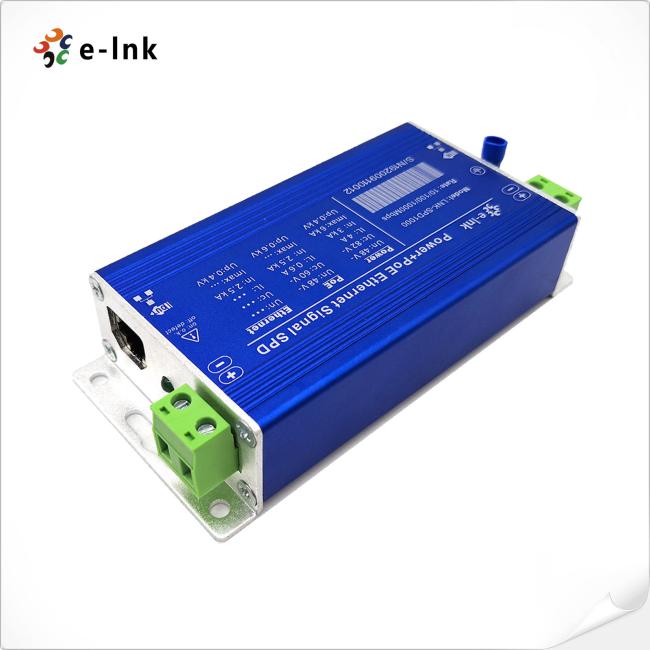

10/100/1000M Gigabit Ethernet & Power PoE Surge Protector

Features

POE Ethernet surge protector.
Suitable for application of wireless AP, network cameras, network switches and other communications equipment supply, network signal line surge protection, integrated design, easy installation.
Adopt power supply + signal POE surge protection integrated design.
Use high quality main component with excellent performance.
Small insertion loss, good transmission rate.
Low residual voltage, efficient surge protection effect.
Fast response, stable performance, reliable working.
Small size, convenient application, maintenance free.

Technical Indexes

LNK-SPD1000 Series	POE Network section	Power Supply Section
Maximum continuous operating voltage UC	60V	82 V
Max Surge Discharge current	6KA (8/20us)
Peak Pulse Current	100A (10/1000us)
Line-line voltage protection level in (UP)	60 V	0.4 kV
Line-PE voltage protection level in (UP)	600 V	0.4 kV
Line-line voltage protection level 1 kV/μs C3 (UP)	60 V	0.15 kV
Line-PE voltage protection level 1 kv/μs C3 (UP)	600 V	0.15 kV
Line-line voltage protection level 1.5kV@10/700μs B3 (UP)	60 V	0.4 kV
Line-PE voltage protection level6kV@10/700μs B3 (UP)	600 V	0.4 kV
Protection Mode	Differential & Common Mode
Insulation Resistance	>1000 MOhm
Shunt Capacitance	<25 pF
Operating Temperature range	-40 °C ~ + 75 °C
Protection class	IP 20
Mounting method	Mounting Flange
Connector	RJ45
Even take over the foot.	1/2, 3/6, 4/5, 7/8
Grounding mode	Dedicated grounding terminals
Grounding Wire	14 AWG or higher
Shell material	Aluminum alloy
IEC Standard	61000-4-5, 61643-21
