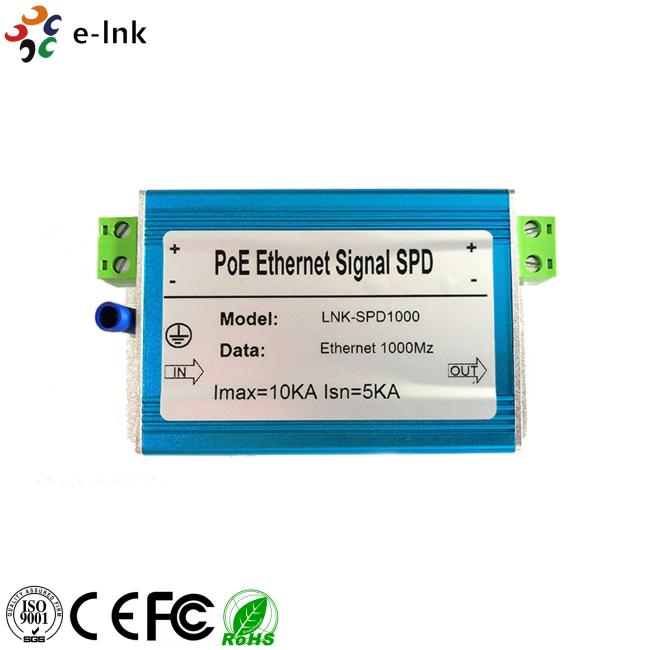

10/100/1000M Gigabit Ethernet Power Surge Protector IP 20 Aluminum Alloy Shell

Price Negotiable

Price: US$13.9-US$16.9/pc

MOQ: 1 pc

Delivery Time: 5-7 working days

Brand: E-link

Product Description

10/100/1000M Gigabit Ethernet Power Surge Protector IP 20

Features

RJ45 network surge protector.
Suitable for application of network cameras, network switches and other communications equipment supply, network signal line surge protection, integrated design, easy installation.
Adopt power supply + Ethernet signal surge protection integrated design.
Use high quality main component with excellent performance.
Small insertion loss, good transmission rate.
Low residual voltage, efficient surge protection effect.
Fast response, stable performance, reliable working.
Small size, convenient application, maintenance free.

Technical Indexes

LNK-SPE1000	Network section	Power Supply Section
Maximum continuous operating voltage UC	3.3 V	85 V-
Line-line nominal discharge current (8/20μs) (In)	2.5 That	5 that
Line-PE Nominal discharge current (8/20μs) (In)	2.5 That	5 that
Line-line voltage protection level in (UP)	15 V	0.4 kV
Line-PE voltage protection level in (UP)	600 V	0.4 kV
Line-line voltage protection level 1 kV/μs C3 (UP)	15 V	0.15 kV
Line-PE voltage protection level 1 kv/μs C3 (UP)	600 V	0.15 kV
Line-line voltage protection level 1.5kV@10/700μs B3 (UP)	15 V	0.4 kV
Line-PE voltage protection level6kV@10/700μs B3 (UP)	600 V	0.4 kV
Operating Temperature range	-20 °C ~ + 60 °C
Protection class	IP 20
Mounting method	Mounting Flange
Wiring mode (inbound/outbound)	RJ45 socket/RJ45socket
Even take over the foot.	1/2, 3/6, 4/5, 7/8
Grounding mode	Dedicated grounding terminals
Grounding Line Range	1.5~2.5mm2
Shell material	Aluminum alloy
